Tungsten - Copper W - Cu Hermetic Packages Electronics Component Heat Sink

China Tungsten - Copper W - Cu Hermetic Packages Electronics Component Heat Sink supplier
Tungsten - Copper W - Cu Hermetic Packages Electronics Component Heat Sink supplier Tungsten - Copper W - Cu Hermetic Packages Electronics Component Heat Sink supplier Tungsten - Copper W - Cu Hermetic Packages Electronics Component Heat Sink supplier

Large Image :  Tungsten - Copper W - Cu Hermetic Packages Electronics Component Heat Sink

Product Details:

Place of Origin: CHINA
Brand Name: JBNR
Certification: ISO9001
Model Number: 50WCu,75WCu,80WCu,85WCu,90WCu

Payment & Shipping Terms:

Minimum Order Quantity: Negotiation
Price: Negotiable

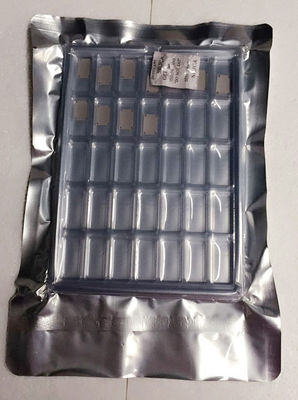

Packaging Details: as customer required
Delivery Time: 15days
Payment Terms: L/C, , T/T, Western Union
Contact Now
Detailed Product Description
Material: Tungsten Copper Density: 15.65
CTE: 8.3 TC: 190-200
Plating: Gold Application: Electronic Packaging
High Light:

tungsten copper heat spreader

,

copper molybdenum heat base



Tungsten-Copper (W-Cu) Electronic Packing Component Heat Sink

Description:

Copper Tungsten is one of the most popular refractory metal based heat sink materials offered today. With the new off-the-shelf system, we are able to offer standard products with a short lead-time at extremely competitive rates.

Our heat sink are composites of tungsten and copper. By adjusting the content of tungsten, we can have its coefficient of thermal expansion (CTE) designed to match those of materials such as ceramics (Al2O3, BeO), semiconductors (Si), and metals (Kovar), etc.

Advantages:

Good machinability

Good hermeticity

Good thermal conductivity

Good mechanical strength to provide excellent mechanical protection to the IC

Molybdenum copper carriers are 40% lighter than comparable tungsten copper composite.


Product Properties:

Type Composition Properties
  Tungsten Content Density CTE Thermal Conductivity
W90Cu 90 ± 1 wt % 17.0 g/cm3 6.5 ppm/K 180 - 190 W/m.K
W85Cu 85 ± 1 wt % 16.3 g/cm3 7.0 ppm/K 190 - 200 W/m.K
W80Cu 80 ± 1 wt % 15.6 g/cm3 8.3 ppm/K 200 - 210 W/m.K
W75Cu 75 ± 1 wt % 14.9 g/cm3 9.0 ppm/K 220 - 230 W/m.K





Application:


These composite are widely used in applications such as Optoelectronics Packages, Microwave Packages, C Packages, Laser Sub-mounts, etc.

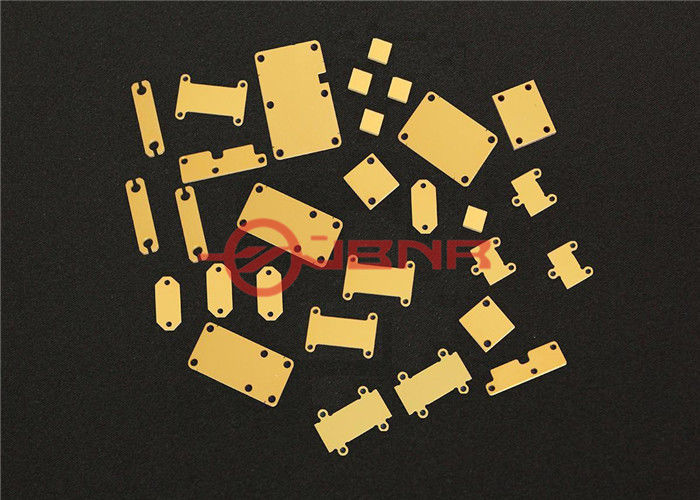

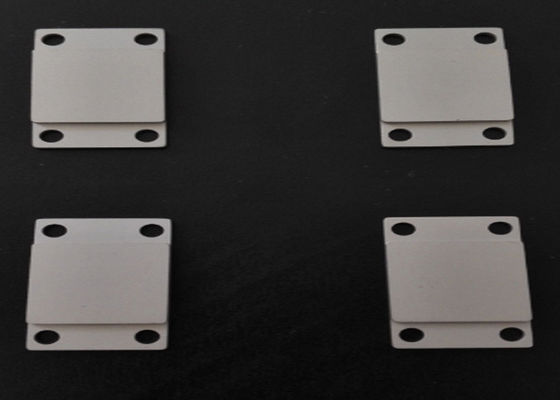

Product picture:
 Tungsten - Copper W - Cu Hermetic Packages Electronics Component Heat Sink
