Tungsten Copper Base Circuit Board

China Tungsten Copper Base Circuit Board supplier
Tungsten Copper Base Circuit Board supplier Tungsten Copper Base Circuit Board supplier

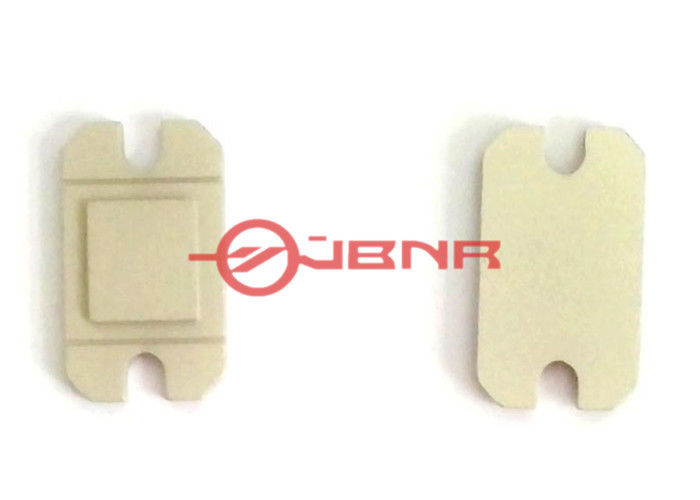

Large Image :  Tungsten Copper Base Circuit Board

Product Details:

Place of Origin: CHINA
Brand Name: JBNR
Certification: ISO9001
Model Number: HCWC008

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Price: Based on drawings
Packaging Details: As customer required
Delivery Time: 15-20 days
Payment Terms: L/C, , T/T, Western Union, D/A
Supply Ability: 5 tons
Contact Now
Detailed Product Description
Material: W90Cu10 , W85Cu15 , W80Cu20, W75Cu25, W70Cu30 Density: 14.9
CTE: 9.0 TC: 220
Application: Circuit Board For Metal Package
High Light:

tungsten copper heat spreader


copper molybdenum heat base

Tungsten Copper Base Circuit Board Hermetic Packages Electronics For Metal Package


Good Thermal Conductivity Tungsten Copper Base Circuit Board For Metal Package
Tungsten Copper is a composite of tungsten and copper. The coefficient of thermal expansion (CTE) of the composite can be disigned by controlling the content of tungsten, matching that of the materials, such as Ceramics (Al2O3, BeO),Semiconductors (Si),Metals (Kovar), etc.
1. High thermal conductivity
2. Excellent hermeticity
3. Excellent flatness, surface finish, and size control
4. Semi-finished or finished (Ni/Au plated) products available
5. Low void
Product Properties:


Grade W Content Density g/cm3

Coefficient of thermal

Expansion ×10-6 (20℃)

Thermal conductivity W/(M·K)
90WCu 90±2% 17.0 6.5 180 (25℃) /176 (100℃)
85WCu 85±2% 16.4 7.2 190 (25℃) / 183 (100℃)
80WCu 80±2% 15.65 8.3 200 (25℃) / 197 (100℃)
75WCu 75±2% 14.9 9.0 230 (25℃) / 220 (100℃)
50WCu 50±2% 12.2 12.5 340 (25℃) / 310 (100℃)


1. Used as high temperature resistance in electronic products and Auto-Engines. Like Computer generates vast amounts of heat, which results in the slow of speed.Tungsten alloy heat sink can solve this problem.

2. Used in applications such as optoelectronics packages, Microwave Packages, Packages, Laser Submounts, etc.

3. Used as heat sink pieces and encapsulation shell.

4. Used in thermal mounting plates, chip carriers, flanges, and frames for RF, microwave millimeter wave packages like LDMOS FET; MSFET; HBT; Bipolar; HEMT; MMIC, light emitting diodes and detectors, laser diode packages like pulse, CW, single emitter, bars and complex carriers for optoelectronics amplifiers, receivers, transmitters, tunable Lasers.

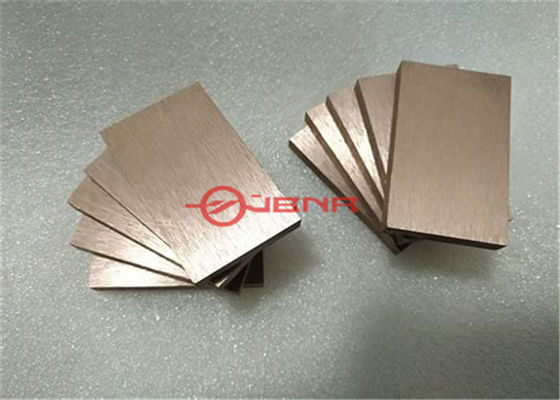

Product picture:
 Tungsten Copper Base Circuit Board
