Molybdenum Copper Heat Sink Hermetic Packages Electronics For Optical Communication

China Molybdenum Copper Heat Sink Hermetic Packages Electronics For Optical Communication supplier
Molybdenum Copper Heat Sink Hermetic Packages Electronics For Optical Communication supplier Molybdenum Copper Heat Sink Hermetic Packages Electronics For Optical Communication supplier Molybdenum Copper Heat Sink Hermetic Packages Electronics For Optical Communication supplier

Large Image :  Molybdenum Copper Heat Sink Hermetic Packages Electronics For Optical Communication

Product Details:

Place of Origin: CHINA
Brand Name: JBNR
Certification: ISO9001
Model Number: 50MoCu,60MoCu,70MoCu,85MoCu

Payment & Shipping Terms:

Minimum Order Quantity: Negotiation
Price: Negotiable
Packaging Details: as customer required
Delivery Time: 25days
Payment Terms: L/C, , T/T, Western Union
Detailed Product Description
Material: Molybdenum Copper Density: 10
CTE: 7 TC: 160-200
Plating: Nickel And Gold Name: Electronic Packaging Materials
High Light:

tungsten copper heat spreader

,

copper molybdenum heat base



Molybdenum Copper Heat Sink For High Power RF, Microwave, Semiconductor Packaging, Optical Communication



Description:

Mo-Cu composite is similar with Tungsten-copper composite, its thermal expansion coefficient and thermal conductivity can be adjusted to match many different materials, it has lower density, but its CTE is higher than W-cu.



Advantages:

1. This molybdenum copper carrier/heat sink feature high thermal conductivity and excellent hermeticity.

2. Molybdenum copper carriers are 40% lighter than comparable tungsten copper composite.





Product Properties:

Grade Mo Content Density g/cm3

Coefficient of thermal

Expansion ×10-6 (20℃)

Thermal conductivity W/(M·K)
85MoCu 85±2% 10.0 7 160(25℃)/156(100℃)
70MoCu 70±2% 9.8 7 200(25℃)/196(100℃)
60MoCu 60±2% 9.66 7.5 222(25℃)/217(100℃)
50MoCu 50±2% 9.5 10.2 250(25℃)/220(100℃)





Application:

These composite are widely used in applications, such as optoelectronics packages Microwave Packages, C Packages, Laser Sub-mounts, etc

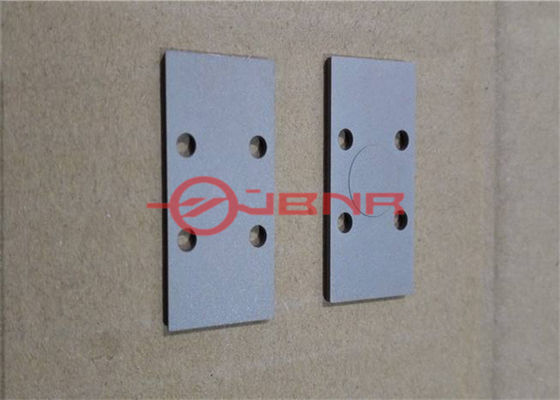

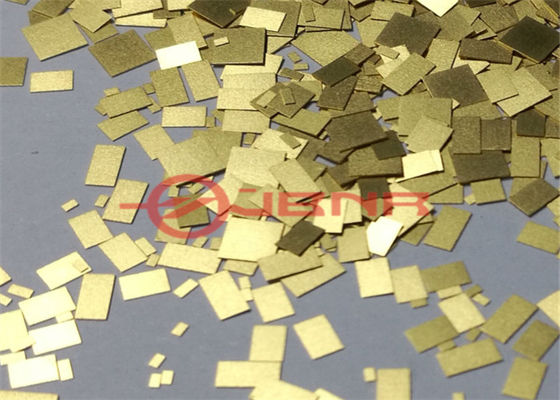

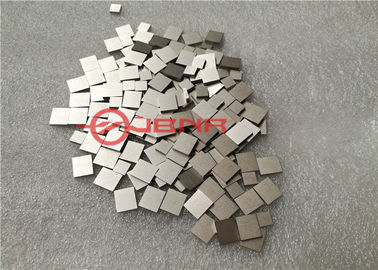

Product picture:

Molybdenum Copper Heat Sink Hermetic Packages Electronics For Optical Communication
