High Thermal Expansion Cu / Mo / Cu Heat Spreader , CMC Alloy Copper Heat Sink

China High Thermal Expansion Cu / Mo / Cu Heat Spreader , CMC Alloy Copper Heat Sink supplier
High Thermal Expansion Cu / Mo / Cu Heat Spreader , CMC Alloy Copper Heat Sink supplier High Thermal Expansion Cu / Mo / Cu Heat Spreader , CMC Alloy Copper Heat Sink supplier

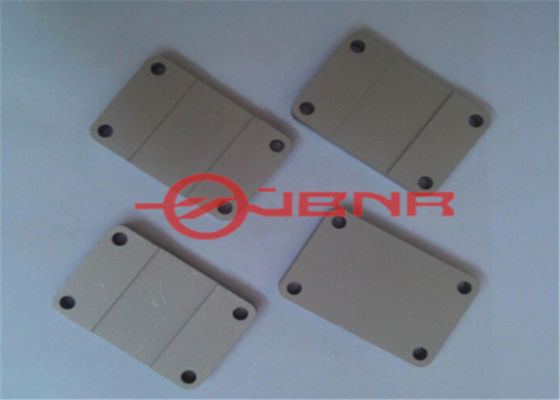

Large Image :  High Thermal Expansion Cu / Mo / Cu Heat Spreader , CMC Alloy Copper Heat Sink

Product Details:

Place of Origin: China
Brand Name: JBNR
Certification: ISO9001
Model Number: HCCM004

Payment & Shipping Terms:

Minimum Order Quantity: Negotiation
Price: Negotiable
Packaging Details: Wooden packages
Payment Terms: D/P,L/C, T/T, Western Union
Supply Ability: 5ton per month
Contact Now
Detailed Product Description
Material: CMC111, CMC121, CMC131, CMC141, CMC13/74/13 Surface: Polished, Shiny, Good Surface Roughness
Plating: Nickel Or Gold Plating Offer: Plate, Sheet, Fabricated Parts
High Light:

molybdenum copper heat spreaders

,

tungsten copper heat spreader



High Thermal Expansion Molybdenum Copper Molybdenum Flanges For RF and Microwave Packages In Microelectronics







Description:

Cu/Mo/Cu(CMC) heat sink, also known as CMC alloy, is a sandwich structured and flat-panel composite material. It uses pure molybdenum as the core material, and is covered with pure copper or dispersion strengthened copper on both sides. Besides, copper molybdenum copper heat sink has adjustable coefficient of thermal expansion, high thermal conductivity, and high thermal stability.

S-CMC is a multi-layered Copper and Molybdenum clad metal, which has an excellent property both low CTE and high thermal conductivity. Its higher thermal conductivity compared to other same kind of materials contributes to highly powered electronic packages.



Product Properties:

Grade Density g/cm3

Coefficient of thermal

Expansion ×10-6 (20℃)

Thermal conductivity W/(M·K)
CMC111 9.32 8.8 305(XY)/250(Z)
CMC121 9.54 7.8 260(XY)/210(Z)
CMC131 9.66 6.8 244(XY)/190(Z)
CMC141 9.75 6 220(XY)/180(Z)
CMC13/74/13 9.88 5.6 200(XY)/170(Z)

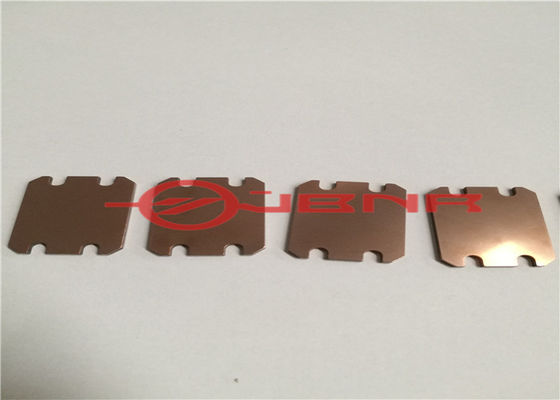

High Thermal Expansion Cu / Mo / Cu Heat Spreader , CMC Alloy Copper Heat Sink

Application:

Cu/Mo/Cu(CMC) heat sink has similar applications with tungsten copper heat sinks. It can be used as thermal mounting plates, chip carriers for microwave, flanges and frames for RF, laser diode packages, LED packages, BGA packages and GaAs device mounts etc.

S-CMC heat sink can be used in wireless communication packaging, opto electronics packaging etc.



Related Products:

We also offer tungsten copper heat sink (WCu), molybdenum copper (MoCu), copper molybdenum copper (Cu/Mo/Cu), copper molybdenum copper copper (Cu/MoCu/Cu) sheets or fabricated parts for microelectronics packaging and power devices.
