Product Details:
Payment & Shipping Terms:
|
| Material: | Molybdenum Copper | Density: | 9.8 |
|---|---|---|---|
| CTE: | 7 | TC: | 190-200 |
| High Light: | copper base plate,copper block heat sink |
||
Copper Molybdenum (CuMo) Heat Spreaders And Packaging Components For RF And Microwave Amplifiers
Description:
Mo-Cu heat sink material is a composite of molybdenum and copper, its thermal expansion coefficient and thermal conductivity can be adjusted to match many different materials, it has lower density, but its CTE is higher than W-Cu.
Advantages:
1. This molybdenum copper carrier/heat sink feature high thermal conductivity and excellent hermeticity.
2. Molybdenum copper carriers are 40% lighter than comparable tungsten copper composite.
Product Properties:
| Grade | Mo Content | Density g/cm3 |
Coefficient of thermal Expansion ×10-6 (20℃) |
Thermal conductivity W/(M·K) |
| 85MoCu | 85±2% | 10.0 | 7 | 160(25℃)/156(100℃) |
| 70MoCu | 70±2% | 9.8 | 7 | 200(25℃)/196(100℃) |
| 60MoCu | 60±2% | 9.66 | 7.5 | 222(25℃)/217(100℃) |
| 50MoCu | 50±2% | 9.5 | 10.2 | 250(25℃)/220(100℃) |
Application:
Molybdenum copper composites to be used extensively in thermal mounting plates, chip carriers, flanges, and frames for high-powered electronic devices. With the thermal advantages of copper with the very low expansion characteristics of molybdenum, molybdenum copper has properties similar to those of silicone carbide, aluminum oxide, and beryllium oxide. The thermal conductivity and low expansion also make molybdenum copper alloy an excellent choice even for extremely dense circuits.

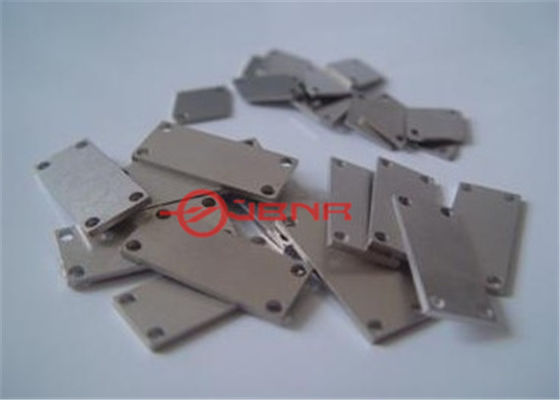

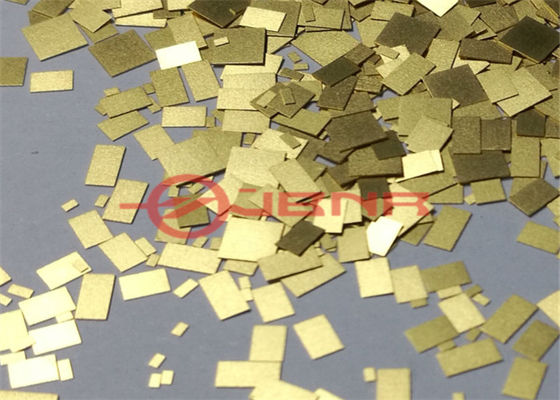

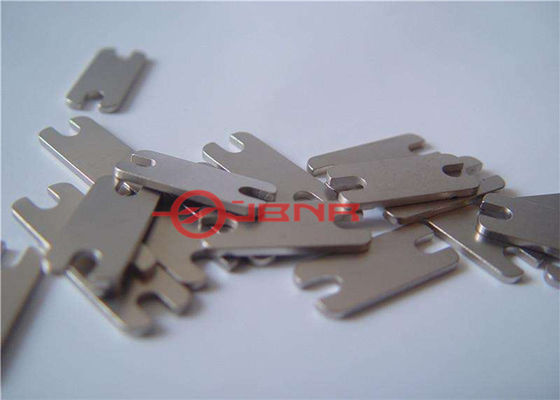

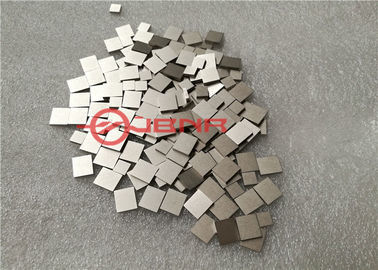

Product picture:
