Nickel And Gold Plated CPC Heat Spreader Material For LDMOSs With Low CTE And High TC

China Nickel And Gold Plated CPC Heat Spreader Material For LDMOSs With Low CTE And High TC supplier
Nickel And Gold Plated CPC Heat Spreader Material For LDMOSs With Low CTE And High TC supplier Nickel And Gold Plated CPC Heat Spreader Material For LDMOSs With Low CTE And High TC supplier

Large Image :  Nickel And Gold Plated CPC Heat Spreader Material For LDMOSs With Low CTE And High TC

Product Details:

Place of Origin: CHINA
Brand Name: JBNR
Model Number: CPC141,CPC232,CPC300

Payment & Shipping Terms:

Minimum Order Quantity: Negotiation
Price: Negotiable
Packaging Details: as customer required
Delivery Time: 25days
Payment Terms: L/C, , T/T, Western Union
Contact Now
Detailed Product Description
Material: Copper/moly Copper/copper Density: 9.5
CTE: 7.3 TC: 220
Application: LDMOS
High Light:

copper base plate

,

copper block heat sink



Nickel And Gold Plated CPC Heat Spreader Material For LDMOSs With Low CTE And High TC


Description:


Cu/Mo70Cu/Cu(CPC) is a sandwich composite similar to that of Cu/Mo/Cu including a Mo70-Cu alloy core layer and two copper clad layers. The ratio of the thickness in Cu: Mo-Cu: Cu is 1:4:1. It has different CTE in X and γ direction, with higher thermal conductivity than that of W (Mo)-Cu & Cu/Mo/Cu and less expensive. All types of Cu/Mo70Cu/Cu sheets can be stamped into components,.

Advantages:

1.More easily to be stamped into components than CMC
2.Very strong interface bonding which can repeatedly resist 850℃ heat shock
3.Higher thermal conductivity and lower cost
4.No magnetism

Product Properties:

Grade Density g/cm3

Coefficient of thermal

Expansion ×10-6 (20℃)

Coefficient of thermal

Expansion ×10-6 (20℃)
CPC141 9.5 7.3

280(XY)/170(Z)
CPC232 9.3 10.2           255(XY)/250(Z)



Application:


It is widely used as Microwave carriers and heat sinks,BGA Packages,LED packages,GaAs device mount,high-frequency packages designed for wireless applications,cellular base stations,LDMOSs etc.

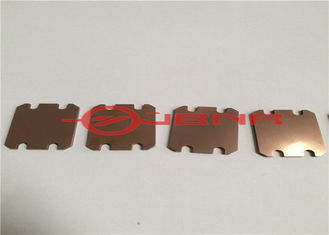

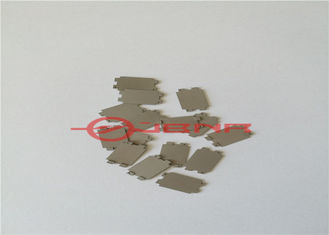

Product picture:

Nickel And Gold Plated CPC Heat Spreader Material For LDMOSs With Low CTE And High TC

Tag:

copper base plate,

copper block heat sink
