Product Details:
Payment & Shipping Terms:
|
| Material: | Tungsten Copper | Density: | 14.9 |
|---|---|---|---|
| CTE: | 9.0 | TC: | 220-230 |
| Application: | Power Semiconductor Devices | ||
| High Light: | copper base plate,copper block heat sink |
||
CuW75 Chip Carriers, Substrates, Flanges, and Frames For Power Semiconductor Devices
Description:
W-Cu heat sink material is a composite of tungsten and copper, with both tungsten low expansion characteristics, but also has copper of high thermal conductivity properties, and the tungsten and copper in the thermal expansion coefficient and thermal conductivity can be adjusted with the W-Cu composition, also the composite can be machined to various shape.
Advantages:
High thermal conductivity
Excellent hermeticity
Excellent flatness, surface finish, and size control
Semi-finished or finished (Ni/Au plated) products available
Product Properties:
| Grade | W Content | Density g/cm3 |
Coefficient of thermal Expansion ×10-6 (20℃) |
Thermal conductivity W/(M·K) |
| 90WCu | 90±2% | 17.0 | 6.5 | 180 (25℃) /176 (100℃) |
| 85WCu | 85±2% | 16.4 | 7.2 | 190 (25℃) / 183 (100℃) |
| 80WCu | 80±2% | 15.65 | 8.3 | 200 (25℃) / 197 (100℃) |
| 75WCu | 75±2% | 14.9 | 9.0 | 230 (25℃) / 220 (100℃) |
| 50WCu | 50±2% | 12.2 | 12.5 | 340 (25℃) / 310 (100℃) |
Application:
These composite are widely used in applications such as Optoelectronics Packages, Microwave Packages, C Packages, Laser Sub-mounts. etc.

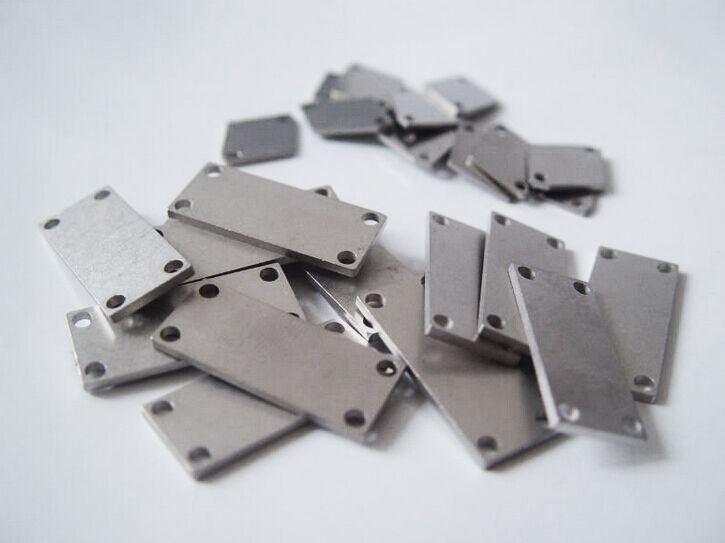

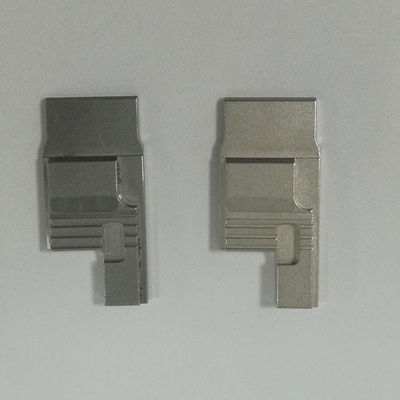

Product picture:
