S-CMC Carrier Copper Molybdenum Heat Base / Molybdenum Copper Heat Spreaders

China S-CMC Carrier Copper Molybdenum Heat Base / Molybdenum Copper Heat Spreaders supplier
S-CMC Carrier Copper Molybdenum Heat Base / Molybdenum Copper Heat Spreaders supplier S-CMC Carrier Copper Molybdenum Heat Base / Molybdenum Copper Heat Spreaders supplier

Large Image :  S-CMC Carrier Copper Molybdenum Heat Base / Molybdenum Copper Heat Spreaders

Product Details:

Place of Origin: CHINA
Brand Name: JBNR
Model Number: S-CMC13.3

Payment & Shipping Terms:

Minimum Order Quantity: Negotiation
Price: Negotiable
Packaging Details: as customer required
Delivery Time: 15days
Payment Terms: L/C, , T/T, Western Union
Contact Now
Detailed Product Description
Material: Copper/moly/copper/moly/copper Density: 9.1
CTE: 10.9 TC: 320
Application: RF And Microwave
High Light:

copper heat sink

,

copper base plate

S-CMC Carrier / Flange / Heat Spreader / Heat Sink For RF and Microwave Industry​


Description:



S-CMC is a multi-layered Copper and Molybdenum clad metal, which has an excellent property both low CTE and high thermal conductivity. Its higher thermal conductivity compared to other same kind of materials contributes to highly powered electronic packages.

Advantages:

High thermal conductivity
Excellent hermeticity
Excellent flatness, surface finish, and size control
Semi-finished or finished (Ni/Au plated) products available

Product Properties:



Material Wt%
Molybdenum Content		 g/cm3
Density		 Thermal conductivity at25℃ Coefficient of thermal
expansion at 25℃
S-CMC 5 9.0 362 14.8
10 9.0 335 11.8
13.3 9.1 320 10.9
20 9.2 291 7.4




















Application:


S-CMC heat sink can be used in wireless communication packaging, opto electronics packaging etc.

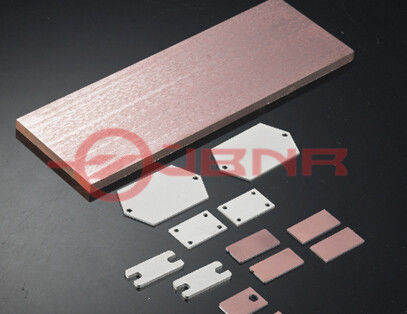

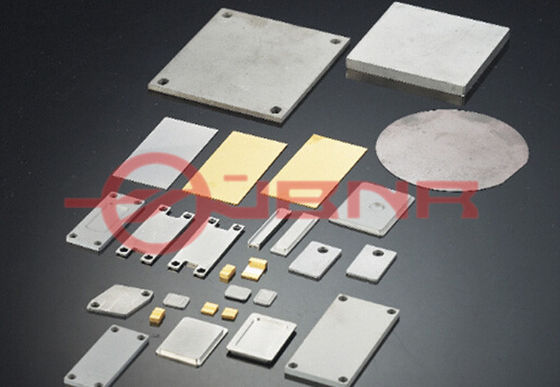

Product picture:



S-CMC Carrier Copper Molybdenum Heat Base / Molybdenum Copper Heat Spreaders





Tag:

copper heat sink,

copper base plate
