Product Details:
Payment & Shipping Terms:
|
| Material: | Copper Tungsten | Connecting: | NDB |
|---|---|---|---|
| Standard: | AWS-RWMA | Bonding: | Strong Bonding |
| High Light: | tungsten welding electrodes,copper welding electrode |
||

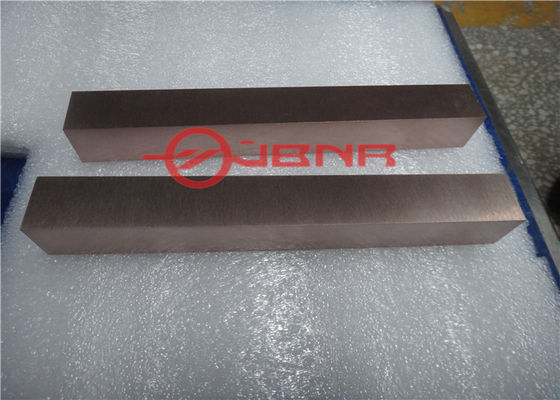

Better Welds And Longer Electrode Life Copper Tungsten Electrodes For Spot Welding Of Wire Harnesses
Descriptions:
Our unique non-defective bonding (NDB) technology creates a copper tungsten electrode that provides the desired levels of thermal conductivity while reducing wear and increasing electrode life. The result is optimal productivity and weld quality for your electrode applications.
Our copper tungsten electrodes resist cracking and offer superior performance for resistance spot welding.
Compared with electrodes using alloys such as chromium copper, testing shows that our copper tungsten electrodes exhibit excellent hardness at high temperature and minimal alloy formation. The results are improved performance without deformation of the electrode or adhesion to the workpiece.
Our copper tungsten electrode design and construction not only utilizes the proper composition and correct tip and shank profiles, but also take advantage of our NDB bonding method in electrode manufacturing, to ensure high thermal conductivity and stable bond quality.
As compared with conventional brazing and press fitting, this NBD process creates a bonding area ratio of almost 100%. This high-quality bonding results in electrodes that offer superior cooling performance after the welding stops, which in turn increases shot cycles and production efficiency. Depending on welding conditions, our NDB method results in electrodes that can achieve up to a ten-fold increase in electrode life.
| Material | Density | Conductivity | Hardness |
|---|---|---|---|
| CW55 | 12.5 | 55 | 79 B |
| CW68 | 13.93 | 52 | 88 B |
| CW70 | 14.18 | 52 | 88 B |
| CW70E | 13.93 | 52 | 88 B |
| CW75 | 14.7 | 48 | 94 B |
| CW78 | 15.12 | 46 | 96 B |
| CW80 | 15.56 | 44 | 98 B |
Applications:
Our high-performance copper tungsten electrodes are suited to a wide range of high-speed, automated welding operations. For brazing copper and copper alloys, our copper tungsten electrodes offer excellent electrode heat balance for applications such as high-speed spot welding of wire harnesses for use in motors, automobiles, and anywhere complex or simple wire harnesses are used. Other applications include line switches for battery packs, as well as electrical components for manufacturing lines of circuit breakers and electrical switches. In addition to being used on copper wire and terminals, our electrodes are used in manufacturing lithium ion batteries and nickel hydrogen batteries, as well as in the welding of battery tubs.
