Class 11 Facing On Welding Electrodes Forming Electrodes Used As Projection Electrode

China Class 11 Facing On Welding Electrodes Forming Electrodes Used As Projection Electrode supplier
Class 11 Facing On Welding Electrodes Forming Electrodes Used As Projection Electrode supplier Class 11 Facing On Welding Electrodes Forming Electrodes Used As Projection Electrode supplier

Large Image :  Class 11 Facing On Welding Electrodes Forming Electrodes Used As Projection Electrode

Product Details:

Place of Origin: CHINA
Brand Name: JBNR
Certification: ISO9001
Model Number: WEWM012

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Price: Negotiable
Packaging Details: as customer required
Delivery Time: 15days
Payment Terms: L/C, , T/T, Western Union, D/A
Supply Ability: 5 tons
Detailed Product Description
Material: 70WCu, 75WCu, 80WCu Density: 14.8g/cc
Hardness: 38HRB Grade: 10W3
Application: Automotive Industry Electric Conductivity: 94% IACS
High Light:

tungsten welding electrodes

,

copper welding electrode





Rwma Class 11 Facing On Electrode Forming Electrodes Used As Projection Electrode



Description:



For resistance welding, the parts will be pressed and heated under high current until the parts are joined together.

And for welding, the force between the electrode and the parts are large. Some of them can reach to 450 MPa.

Uncer this process, it rises great challenge for the welding electrodes.



We make welding electrodes from refractory metal  like tungsten, molybdenum, tungsten alloy and molybdenum alloy.

These refractory metals have high melting point which can withstand high temperature and they also have good electrical conductivity.



TUNGSTEN 75% – COPPER 25%, suited to similar applications as Class 10, and for facing on electrode forming electrodes. It is harder than Class 10, and is for general use in projection welding electrodes.



For joint method between shaft and our refractory metal, we can offer braze welding and also back casting.



Our products can be used for spot welding, projection welding and also thermode welding.

Product Properties:
Content(%wt.) Density(g/m³) Electrical conductivity(%IACS) Hardness(HRB) Grade Application
Cr:0.6-1% 8.9 85 70 C18200 shank
Cr:0.6-1.5%;Zr:0.05-0.25%;Cu:balance 8.9 80 80 C18150 shank
75W25Cu 14.5 94 38 10W3 face





For different material, we have different materials to choose. It can ensure that you get the best material for your application.



Material to weld Material of electrode
uncoated steel CuCrZr / W
stainless steel CuCrZr / WCu
coated steel CuCrZr / Mo / W / WCu
pure copper W / Mo / WCu
brass (CuZn / Tin Bronze CuSn) CuCrZr / Mo / W / WCu
other Cu alloys CuCrZr / Mo / W / WCu
Cu + Cu alloys coated W / Mo / WCu
other non-iron metals CuCrZr / Mo / W / WCu
precious metals CuCrZr / Mo / W / WCu
refractory metals W

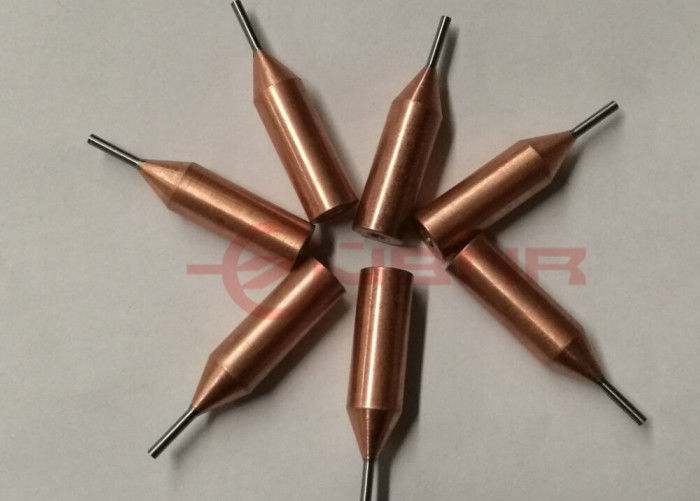

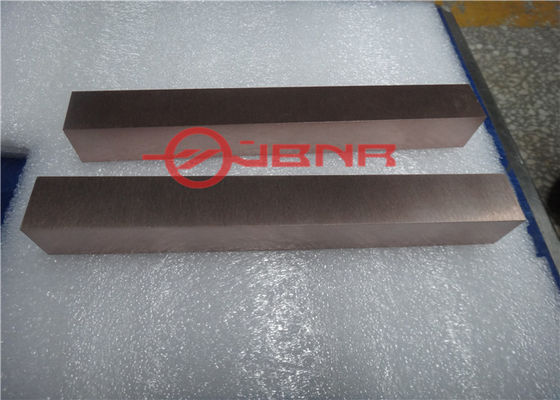

Product picture:

Class 11 Facing On Welding Electrodes Forming Electrodes Used As Projection Electrode
