Flash And Butt Spot Welding Electrodes Light Upsetting And Seam Welding Bushings

China Flash And Butt Spot Welding Electrodes Light Upsetting And Seam Welding Bushings supplier
Flash And Butt Spot Welding Electrodes Light Upsetting And Seam Welding Bushings supplier Flash And Butt Spot Welding Electrodes Light Upsetting And Seam Welding Bushings supplier

Large Image :  Flash And Butt Spot Welding Electrodes Light Upsetting And Seam Welding Bushings

Product Details:

Place of Origin: CHINA
Brand Name: JBNR
Certification: ISO9001
Model Number: WEWM010

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Price: Negotiable
Packaging Details: as customer required
Delivery Time: 15days
Payment Terms: L/C, , T/T, Western Union, D/A
Supply Ability: 5 tons
Contact Now
Detailed Product Description
Material: 70WCu, 75WCu, 80WCu Density: 14.8g/cc
Hardness: 38HRB Grade: 10W3
Application: Automotive Industry Electric Conductivity: 94% IACS



Flash And Butt Welding Electrodes, Spot Welding Electrodes, Light Upsetting And Seam Welding Bushings



Description:



For resistance welding, the parts will be pressed and heated under high current until the parts are joined together.

And for welding, the force between the electrode and the parts are large. Some of them can reach to 450 MPa.

Uncer this process, it rises great challenge for the welding electrodes.





The Tungsten - Copper combination produces dense, hard metals of superior wear resistance and strength at elevated temperatures. In addition,



By brazing tungsten with copper, the electrode can have the property of superior wear resistance and strength under high temperatures.

And hey possess good thermal and electrical conductivity.



They are suited for Suited for projection welding electrodes, electro-forming and electro-forging electrodes facings for upsetting of studs and rivets, cross-wire welding of large diameter wire and rod, flash and butt welding electrodes, spot welding electrodes, light upsetting and seam welding bushings. Harder than Class 10 and used where moderate pressure is required.



For joint method between shaft and our refractory metal, we can offer braze welding and also back casting.



Our products can be used for spot welding, projection welding and also thermode welding.

Product Properties:
Content(%wt.) Density(g/m³) Electrical conductivity(%IACS) Hardness(HRB) Grade Application
Cr:0.6-1% 8.9 85 70 C18200 shank
Cr:0.6-1.5%;Zr:0.05-0.25%;Cu:balance 8.9 80 80 C18150 shank
75W25Cu 14.5 94 38 10W3 face

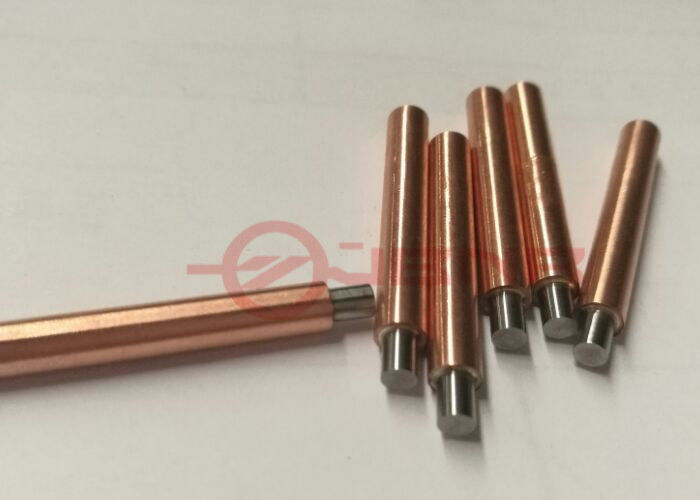

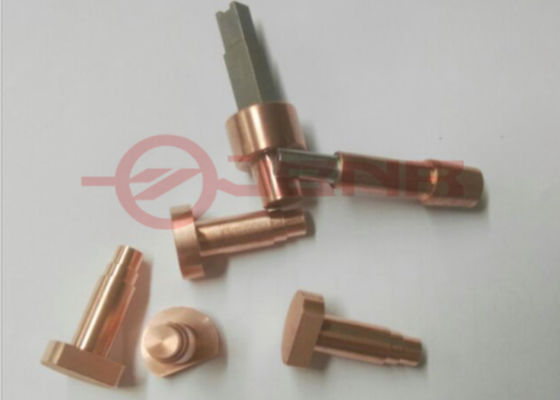

Product picture:

Flash And Butt Spot Welding Electrodes Light Upsetting And Seam Welding BushingsFlash And Butt Spot Welding Electrodes Light Upsetting And Seam Welding Bushings
