Niobium - Zirconium Wires Niobium Products EB Or VAR Process For Medical Industry

China Niobium - Zirconium Wires Niobium Products EB Or VAR Process For Medical Industry supplier

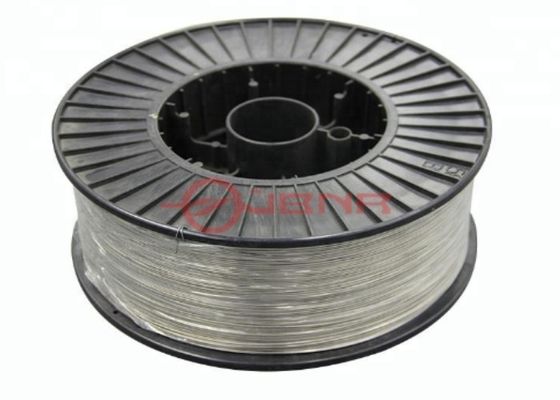

Large Image :  Niobium - Zirconium Wires Niobium Products EB Or VAR Process For Medical Industry

Product Details:

Place of Origin: China
Brand Name: JBNR
Certification: ISO 9001:2017

Payment & Shipping Terms:

Minimum Order Quantity: Negotiation
Price: Negotiable
Packaging Details: Standard for exporting
Delivery Time: 10~15 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 2 Ton per Month
Detailed Product Description
Material Standard: ASTM B 365-98 Material Grade: DNb-1, DNb-2
Purity: ≥ 99.9% Dimension: Ф(0.2~2.0mm)±0.01mm; Ф(2.0~3.0mm) ±0.02mm
High Light:

niobium plate

,

niobium rod

Niobium Products Niobium-Zirconium wires



1.Description



Commodity: Niobium-Zirconium wires

Standard: ASTM B364-92

Dimension: Ф(0.2~2.0mm)±0.01mm; Ф(2.0~3.0mm) ±0.02mm

Purity: ≥99.9%

The Special sizes are available upon customer’s requirement

The Nb and Zr wire made by EB or VAR process and mainly used as raw material to fabricate plate, tube, strip, rod, wire and other mill products.

Due to good corrosion-resistant and thermal-stable properties, it is widely applied in the chemical processing, semiconductor, medical industry, nuclear energy and high-temperature parts.





2.Application

Niobium-Zirconium wires   used for plate rolling tube, and wire drawing,doping into alloy



3.Specification



Chemical composition





Grade

Chemical composition, Maximum
C O N H Ta Fe W Mo Si Ni Hf Zr
Ta-1 0.01 0.03 0.01 0.0015 0.1 0.005 0.03 0.01 0.005 0.005 0.02 0.02
Ta-2 0.01 0.025 0.01 0.0015 0.2 0.01 0.05 0.01 0.005 0.005 0.02 0.8-1.2









Special requirements to be agreed upon by the supplier and buyer
