Product Details:
Payment & Shipping Terms:
|
Material Standard: | ASTM B392-98 | Material Grade: | RO4200-1, RO4210-2 |
---|---|---|---|
Purity: | ≥ 99.95% | Tensile Strength : | 18000 Psi, 125 MPa |
Yield Strength : | 12000 Psi, 85 MPa | Dimension: | 2~20mm Thickness |
High Light: | niobium plate,niobium rod |

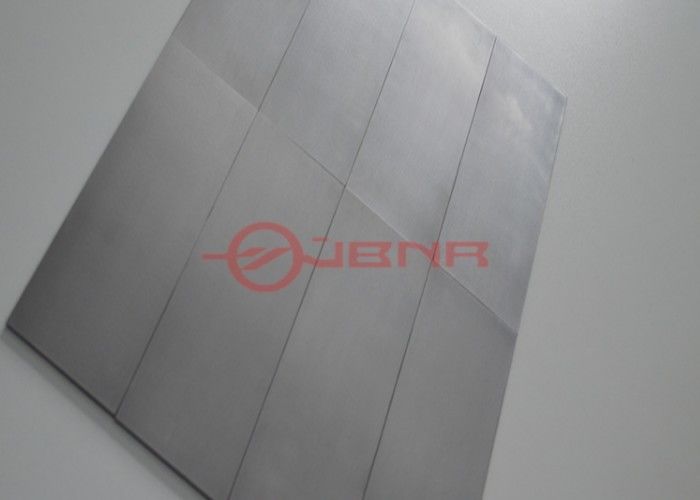

Niobium Products Niobium Plate High Purity Used as Sputtering Target ASTM B392-98
1.Description
Being a high temperatures and corrosive materials, niobium sheet and strip is commonly used in the industrial diamonds production, deep draw application and also chemical industrial with medical fields. Additionally niobium is used to make colored jewellery. We can provide bright surface finishing that is perfect for such applications which involve anodizing.
2.Application
Niobium rod are widely used in chemistry, electronics, aviation and aerospace industry
3.Specification
Chemical composition
Grade | Chemical composition ,maximum | ||||||||||||
Fe | Si | Mo | W | Ti | Cr | Ta | Ni | O | C | H | N | Nb | |
Nb1 | 0.005 | 0.005 | 0.010 | 0.010 | 0.002 | 0.002 | 0.10 | 0.005 | 0.020 | 0.020 | 0.001 | 0.01 | Balance |
Nb2 | 0.01 | 0.005 | 0.010 | 0.020 | 0.005 | 0.005 | 0.25 | 0.005 | 0.040 | 0.030 | 0.005. | 0.025 | Balance |
Size:Special requirements to be agreed upon by the supplier and buyer
