| Type: | Cutting Tool | Product Name: | TC Cutting Blade |
|---|---|---|---|
| Size: | Customized | Surface: | Polish |
| Usage: | Chemical Fiber Cutting | Apprication: | Thickness Planer |
| High Light: | tungsten carbide plate,tungsten carbide sheet |
||

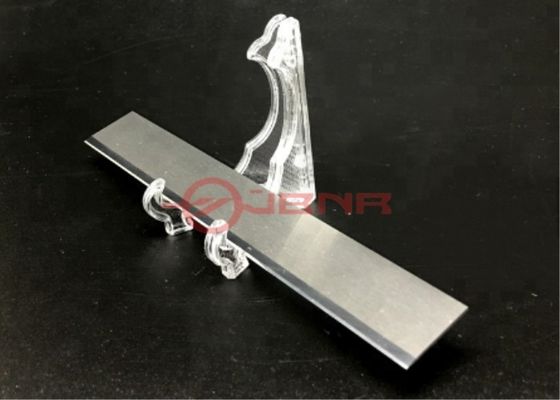

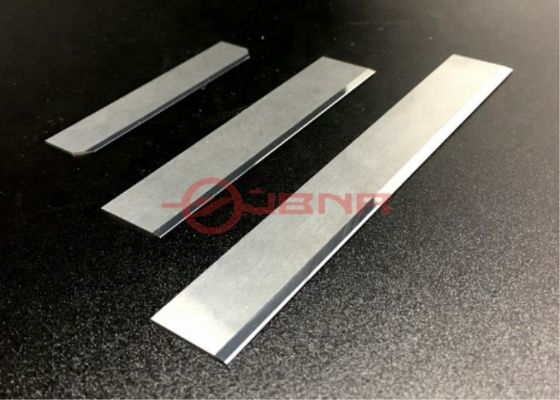

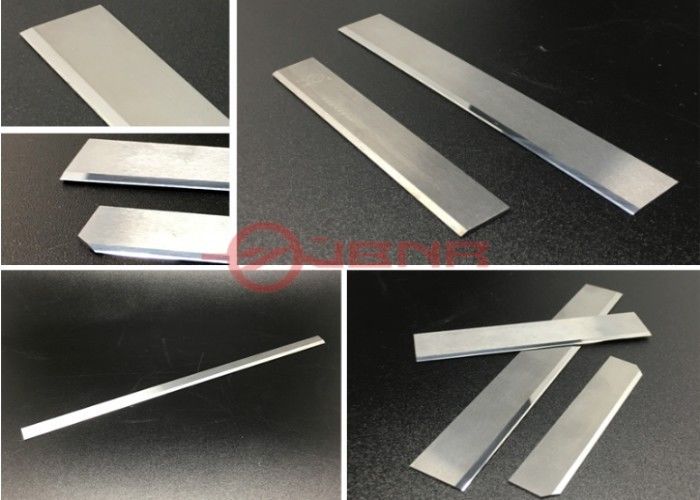

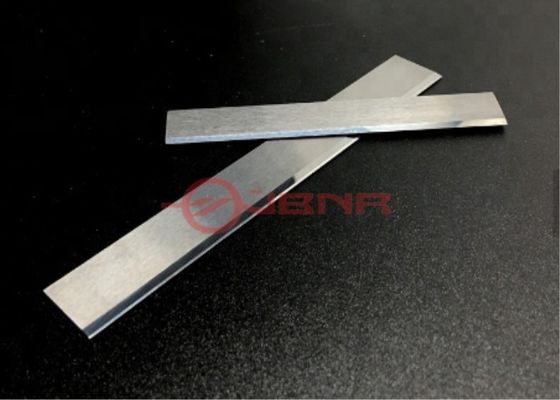

Tungsten Carbide Products chemical fiber cutting TC tungsten carbide blade
We are reliable supplier of TC cutting knives and blade.
New materials have a lot to offer.
We specialized in Customer made knives and blades for many years.
We are proud to offer quality knives and blades made from tungsten carbide inlay for the plastics, papers, pulp, film and rubber industrials.
Equipment: EDM machines, Cutting Machine and drilling, CNC machine, Precision grinding machine etc.
| grade | density g/cm3 | hardness HRA | T.R.S MPa | performance&application recommended |
| MR020 | 14.35-14.5 | 91.8 | 3000 | Sub-micron grain,apply to cutting corrugated board,chemical fiber, plastics,leather,battery pole pieces,all kinds of milling cutters and hole-machining tools |
| MR016 | 14.5-14.65 | 90.2 | 2600 | Medium grain,apply to cutting asbestos, machining of low hardness gray cast iron |
| MR030 | 13.95-14.1 | 90.5 | 3200 | Sub-micron grain,superb abrasive resistance and toughness,apply to woodworking cutters,cutting corrugated board,battery pole pieces etc |
| other grades and sizes can be offered as per customers'requirements | ||||
| Item | Common sizes L*W*T(mm) |
| 1 | 193*18.9*0.884 |
| 2 | 170*19*0.884 |
| 3 | 140*19*1.4 |
| 4 | 140*19*0.884 |
| 5 | 135.5*19.05*1.4 |
| 6 | 135*19.05*1.4 |
| 7 | 135*18.5*1.4 |
| 8 | 118*19*1.5 |
| 9 | 117.5*15.5*0.9 |
| 10 | 115.3*18.54*0.84 |
| 11 | 95*19*0.884 |
| 12 | 90*10*0.9 |
TC cutting blade is mainly used for cutting paper, rubber, plywood, hardwood, PCB, PVC, stainless steel, high manganese steel and PCB, PVC electronic circuit boards and other materials.
TC cutting blade require high precision, no glitches, maximum abrasion resistance.
We are using HIP sintered and fine grinding, polishing plating to reduce frictions when cutting, improved the accuracy and speed slitting greatly, tool life extended!
