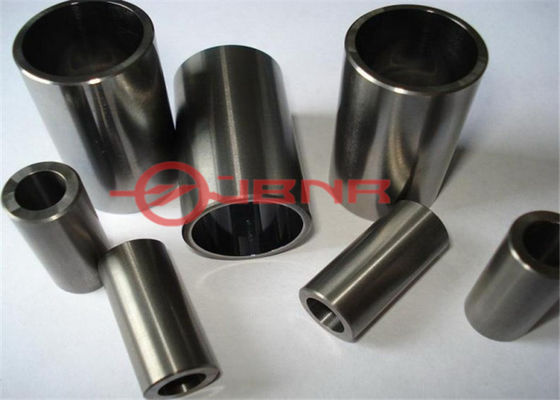

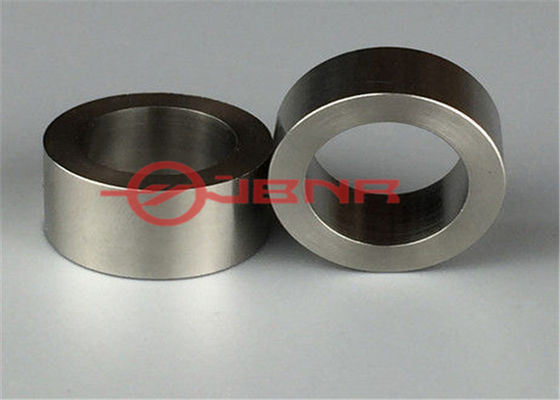

Anti Corrosive YG8 Tungsten Carbide Sleeve For Shaft Sleeve Of Hard Alloy

China Anti Corrosive YG8 Tungsten Carbide Sleeve For Shaft Sleeve Of Hard Alloy supplier
Anti Corrosive YG8 Tungsten Carbide Sleeve For Shaft Sleeve Of Hard Alloy supplier Anti Corrosive YG8 Tungsten Carbide Sleeve For Shaft Sleeve Of Hard Alloy supplier

Large Image :  Anti Corrosive YG8 Tungsten Carbide Sleeve For Shaft Sleeve Of Hard Alloy

Product Details:

Place of Origin: China
Brand Name: JBNR
Certification: ISO9001
Model Number: TBMC003

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Price: Based on customers' requirements
Packaging Details: Wooden boxes
Delivery Time: 15-20 days
Payment Terms: T/T, D/A, D/P, Western Union
Supply Ability: 5 ton per month
Detailed Product Description
Property: Steps Can Be Machined Hardness: HRA 89-91
High Light:

tungsten carbide sheet

,

tungsten carbide bar



Anti Corrosive YG8 Tungsten Carbide Sleeve For Shaft Sleeve Of Hard Alloy



We are professional producer for producing tungsten carbide sleeve.

With rich experience and advanced technology, our tungsten carbide is being employed worldwide.

By choosing 100% virgin material and carrying out strict process control, we make superior quality products.





Our tungsten carbide bush with different grades have excellent wear resistance and good high temperature resistant.

Under 500 degrees Celsius temperature, the hardness can almost maintain the same. Even under 1000 degrees Celsius temperature, the hardness can still be high compared to other materials.

We can machine the carbide sleeve based on customers' infomation.





Our advantage:

1. High density: it can reach to 16.5-18.50g/cm3;

2. High strength: tensile strength is 700-1000Mpa;

3. High ability to absorb radiation: its ability is 3 or 4 times that of Plumbum;





Grade for tungsten carbide Sleeve

Grade ISO Density Hardness T.R.S Performances &applications recommended
YG6 K20 14.9 89.5   Suitable for finish machining and semi machining for the cast iron,Non ferrous metal,alloy and unalloyed materials. Also qualified for wire drawing for the steel and non-ferrous metal, electric drill for geology use and steel drill etc.
YG8 K20-K30 14.6 89 2320 Suitable for rough machining of cast iron, non-ferrous metal,nonmetal materials, drawing of steel, non-ferrous metal and pipes,various drills for geology use, tools for machine manufacture and wearing parts.
YG15 K40 14.1 86.5 2400 Suitable for hard rock drilling, steel bars with high compression ratios, pipe drawing, punching tools, core cabinet of powder metallurgy automatic molders etc.
YS2T K30-M30 14.45 92.5 2800 Suitable for low speed rough machining, milling titanium alloy and refractory alloy, especially for cut-off tool and silk prick.
YG20   14.6 83.5 2480 Suitable for making dies with low impact such as punchingwatch parts, battery shells, small screw caps





Tungsten carbide sleeve applications

Anti Corrosive YG8 Tungsten Carbide Sleeve For Shaft Sleeve Of Hard Alloy
