Product Details:
Payment & Shipping Terms:
|
| Material: | 80% Tungsten ,20% Copper | Sized: | Customized |
|---|---|---|---|
| Density: | 15.15 G/cm3 | Hardness: | 220HB Kgf/mm2≥ |
| Resistivity: | 5.0 µΩ.cm≤ | IACS: | 34%≥ |
| Bending Strength: | 980 Mpa≥ | Application: | Electrical Contacts |
| High Light: | copper tungsten electrodes,copper tungsten edm electrodes |
||

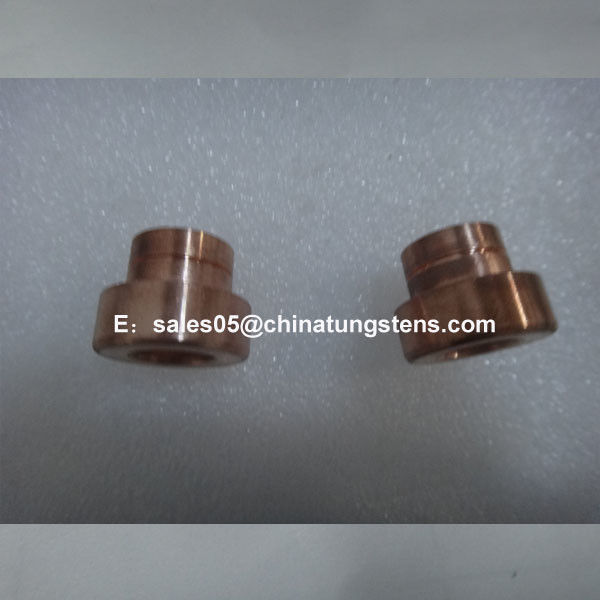

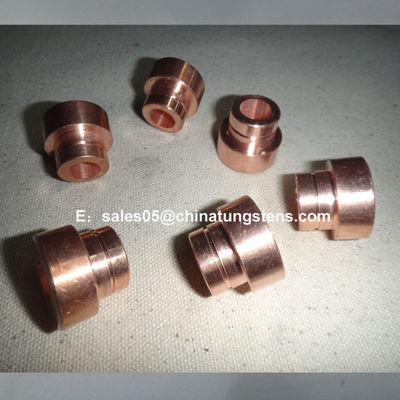

CE Certificate Copper tungsten Arcing contact W80Cu20
An electrical connector is a conductive device for joining electrical circuits together. The connection may be temporary, as for portable equipment, or may require a tool for assembly and removal, or may be a permanent electrical joint between two wires or devices. There are hundreds of types of electrical connectors. In computing, an electrical connector can also be known as a physical interface (compare Physical Layer in OSI model of networking). Connectors may join two lengths of flexible wire or cable, or may connect a wire or cable to an electrical terminal. Although cable glands are often called "connectors", a technical distinction can be made in the terminology, which differentiates them from quick-disconnect, conducting electrical connectors. The distinction is often not made. Higher voltage applications bring a diverse set of challenges in design and wear of electrical contacts. Some of these high voltage contacts are operated in oil, others in air, others in a vacuum and still others in varying gases to deal with the unique requirements of high voltage applications. Some of the problems encountered will be high wear, arcing and sticking (or welding).
Advantages
Higer thermal conductivity
Low thermal expansion
High arc resistance combined with good electrical conductivity
Applications
Electrical Contacts
Electrical contacts are subjected to extreme mechanical and thermal stresses during operation. For fractions of a second, temperatures rise to several thousand degrees as a result of the arcing. Our tungsten copper materials are used owing to their unique physical properties.
Copper Tungsten Technical Data
| Grade No | Chemical | Composition % | Density | Hardness | Resistivity | IACS | Bending Strength | |
| Cu | Impurity | Wolfram | g/cm3≥ | HB Kgf/mm2≥ | µΩ.cm≤ | %≥ | Mpa≥ | |
| W50/Cu50 | 50±2.0 | 0.5 | Balance | 11.85 | 115 | 3.2 | 54 | |
| W55/Cu45 | 45±2.0 | 0.5 | Balance | 12.3 | 125 | 3.5 | 49 | |
| W60/Cu40 | 40±2.0 | 0.5 | Balance | 12.75 | 140 | 3.7 | 47 | |
| W65/Cu35 | 35±2.0 | 0.5 | Balance | 13.3 | 155 | 3.9 | 44 | |
| W70/Cu30 | 30±2.0 | 0.5 | Balance | 13.8 | 175 | 4.1 | 42 | 790 |
| W75/Cu25 | 25±2.0 | 0.5 | Balance | 14.5 | 195 | 4.5 | 38 | 885 |
| W80/Cu20 | 20±2.0 | 0.5 | Balance | 15.15 | 220 | 5.0 | 34 | 980 |
| W85/Cu15 | 15±2.0 | 0.5 | Balance | 15.9 | 240 | 5.7 | 30 | 1080 |
| W90/Cu10 | 10±2.0 | 0.5 | Balance | 16.75 | 260 | 6.5 | 27 | 1160 |
