Product Details:
Payment & Shipping Terms:
|
| Shaping Mode: | Extrusion Mould, Die Casting | Trial Order: | Acceptable |
|---|---|---|---|
| Size: | Can Be Customized As You Required | Grade: | YG20C TL40.5 YG20 Etc. |
| Service: | OEM & ODM | Alloy Specification: | YG20C TL40.5 |
| Particle: | Medium | Surface Treatment: | Ground And Polished |
| High Light: | tungsten carbide plate,tungsten carbide sheet |
||

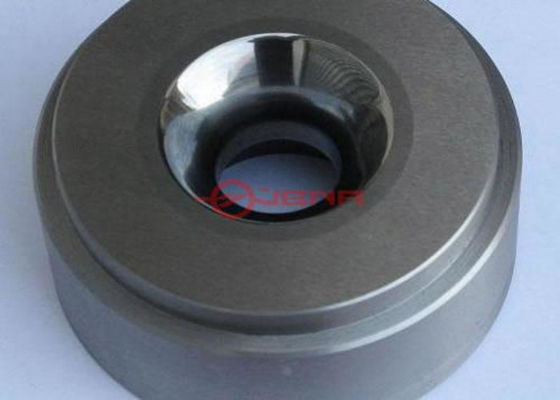

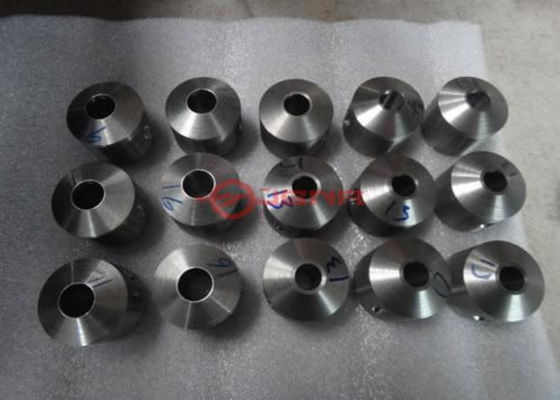

Tungsten Carbide Products YG20C TL40.5 Tungsten Carbide Extrusion Dies Tungsten Carbide Dies
Tungsten carbide cold heading dies has a wide range of uses, such as electronic devices, radar, television, instrumentation, and aerospace and other high-precision wires and commonly used tungsten wires, molybdenum wires, stainless steel wires, alloy wires and cable wires and so on.
| Tungsten carbide dies | ||||
| Mold class performance of tungsten carbide grades and usage | ||||
| Grade |
Hardness HRA |
TRS N/ mm² | Density g/ cm³ | Applications recommended |
| YG6X | 92 | 1800 | 14.9 | It can be used to make steel wires, non-ferrous metal wires or bars material with less than 6.0mm diameter. |
| YG6 | 90.5 | 2000 | 14.9 | It can be used for steel wires, non-ferrous metal and alloy bars under 20mm diameter, and can also be used for drawing pipes with diameter of less than 10mm. |
| YG8 | 90 | 2200 | 14.7 | Can be used in steel, non-ferrous metal and alloy bars and pipes, also can be used in manufacturing machinery parts, tools and vulnerable parts. |
| YG8.2 | 89 | 2000 | 14.6 | |
| YG8L | 89 | 2000 | 14.6 | |
| YG11 | 88.5 | 2300 | 14.4 | It can be used for high compression steel rods and steel pope drawing, and the top hammer, perforation and stamping dies of working under greater stress. |
| YG16 | 87 | 2600 | 14.0 | |
| YL50 | 87 | 2600 | 14.4 | |
| YG20 | 85 | 2800 | 13.6 | It can be used for stamping die, such as punching watch parts, stamping battery shell, tooth paste mould, small size steel ball, screw, nut, etc. |
| YG20C | 83.5 | 2800 | 13.6 | It can be used in standard parts, bearings, tools and other industries. |
| TL40.4 | 82 | 3000 | 13.3 | It can be used in standard parts, bearings, tools and other industries for cold forging, cold pressing, cold pressing mould, warhead and shell stamping dies. |
