Raw Material Tungsten Carbide Products Cemented Carbide Shield Cutter

China Raw Material Tungsten Carbide Products Cemented Carbide Shield Cutter supplier
Raw Material Tungsten Carbide Products Cemented Carbide Shield Cutter supplier Raw Material Tungsten Carbide Products Cemented Carbide Shield Cutter supplier

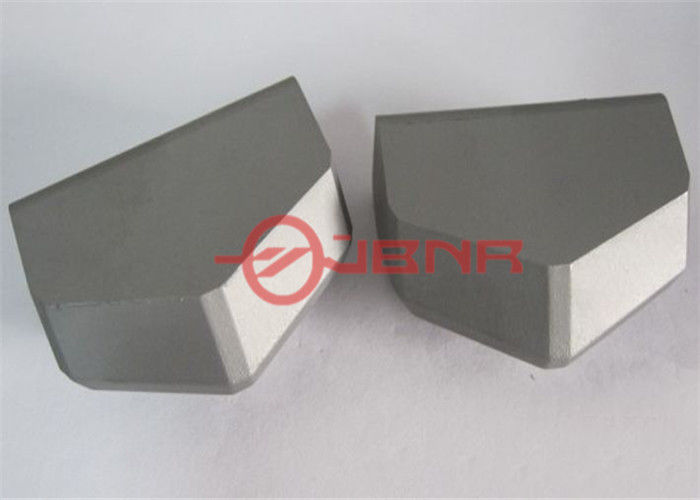

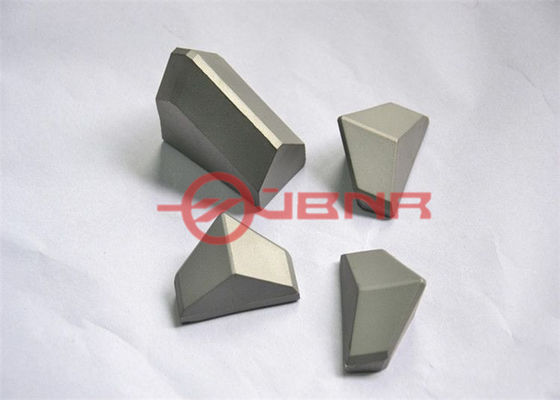

Large Image :  Raw Material Tungsten Carbide Products Cemented Carbide Shield Cutter

Product Details:

Place of Origin: China
Brand Name: JBNR
Certification: ISO9001
Model Number: TBMC001

Payment & Shipping Terms:

Minimum Order Quantity: 10 pcs
Packaging Details: Wooden Boxes
Delivery Time: 15-20 Working Days
Payment Terms: D/A, T/T, Western Union
Supply Ability: 2 Ton Per Month
Detailed Product Description
Material: Tungsten Carbide Or Cemented Carbide Powder: 100% Virgin Material
Properties: High Hardness, Perfect Wear-resistance Dimensions: Customize On Customers' Drawings
High Light:

tungsten carbide sheet

,

tungsten carbide bar



Raw Material Tungsten Cemented Carbide Shield Cutter For Tunnel Boring Machines



Zhuzhou Jiabang Refractory Metal Co., Ltd is professional producer for tungsten carbide shield cutters.

We produce the shield cutter with 100% virgin material in HIP and make sure the structure is stable and even.



By using our special production process, the tungsten carbide shield cutter is the right choice for the tunnel boring machines (TBM).



It has high wear resistance, high hardness and long lifespan.



Grades and Properties:



Grades

Density

g/cm³

T.R.S

Mp α

Hardness

HRA

Performance &application recommended Approx grades in China ISO Grade
MK4 15.1 1800 90.0 Mainly used as small buttons for percussion bits to cut soft and medium hard formations. YG4C K01-K05
MK6 14.9 2100 90.5 For coring crowns, electric coal drill bits, coal cutting picks, oil cone bits and scraping knife bits, used in geological prospecting, coal mining and oil well boring. YG6 K10
MR06H 14.94 3000 90.5 Good strength and wear resistance, for bits of rotary hammer rock drills and heavy rock drills, for hard and very hard rocks. YK05,KK06H K10
MK8 14.7 2800 89.8 For coring crowns, electric coal drill bits, coal cutting picks, oil cone bits and scraping knife bits, used in geological prospecting, coal mining and oil well boring. YG8 K20
MK10 14.7 2700 89 Mostly used as the buttons of small and medium sized percussion bits and as the inserts of rotary prospecting bits to cut soft and medium hard formations.

YG8C

ZD15

K20
MK15 14.6 2750 88 Suitable for strips, conical buttons for rotary percussion drill bits, geological prospecting buttons, cut soft and medium hard formations.

YK15

YG9C

K20-K30
MK20 14.5 2800 87.5 Primarily for the buttons and inserts of rotary percussion bits to cut medium-hard and hard formations.

YK20

YG10C

K30
MK30 14.4 2850 87.0 Largely used for the inserts and buttons of percussion bits and tricone bits to cut medium-hard, hard and very hard formations. YG11C K20-K30
MK40 14.2 2900 86 Mainly used for the buttons of tricone bits, and inserts of rotary percussion bits to cut hard and very hard formations.

YK40

YG13C

K40
MK50 14.0 3000 85 For oil cone drill bits, for medium soft and medium-hard rocks. YG15C K40
MK60 14.0 3000 87 Good strength and less wear resistance, for bits of rotary hammer rock drills and heavy rock drills, for hard and very hard rocks. YG15 K40



Applications:



For underground tunnels, there are some constructions like subway. And there are also tunnels through the mountains.

All these will need tunnel boring machines. And on these machines, there is a circle blade. And our tungsten carbide shield cutters are mounted on the blade.
