Molybdenum Seed Chuck For Sapphire Growth Furnace / Seed Clamp
Characteristics:
High melting point, high strength;
Outstanding thermal conductivity;
Excellent resistance to oxidation at high temperatures;
Excellent resistance to electrochemical corrosion;
Properties:
| Molybdenum | Tungsten | ||
| Density | G/CM3 | 10.22 | 19.3 |
| Melting point | oC | 2620 | 3410 |
| Thermal conductivity | W/M.K | 98.8 (1400 oC ) | 174 (10--100 oC ) |
| Resistivity | Ω.CM | 53.1 (1730 oC ) | 35 (1000 oC ) |
| Vapor pressure | Pa | 7.09 X 10-6 (1600 oC ) | low |
| Modulus | /MPa | 343 350 | 35 316 |
| Thermal expansion coefficient | K-1 | 6.2 X 10-6 (700 oC ) | 4.5 X 10-6 (0--100 oC ) |
| Hardness | HB | 35--125 | 290--350 |
| Tensile strength | MPa | 687 | 981-1472 |
Application:
Used in smelting casting equipment, such as single crystal furnace smelting industry.
Molybdenum seed crystal clip is connected to the seed crystal rod (seed) device, the seed crystal rod into molybdenum seed crystal chuck, with molybdenum pin, there is also a T slot seed crystal clip, effect is the same. Molybdenum seed crystal chuck can be used repeatedly.

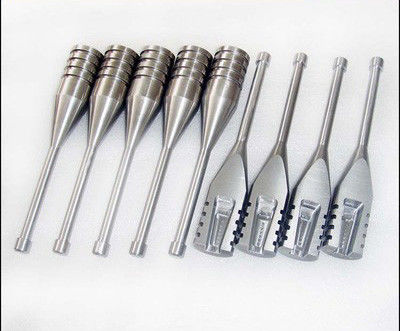

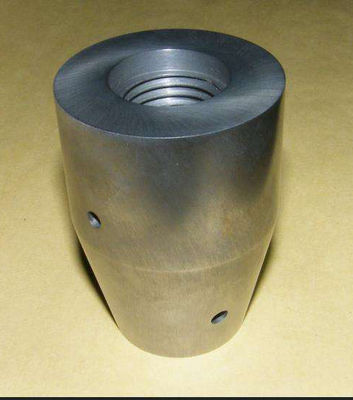

Product picture:
