High Purity Molybdenum Blank / Moly Plate For Hydrogen - Atmosphere Furnace

China High Purity Molybdenum Blank / Moly Plate For Hydrogen - Atmosphere Furnace supplier
High Purity Molybdenum Blank / Moly Plate For Hydrogen - Atmosphere Furnace supplier High Purity Molybdenum Blank / Moly Plate For Hydrogen - Atmosphere Furnace supplier

Large Image :  High Purity Molybdenum Blank / Moly Plate For Hydrogen - Atmosphere Furnace

Product Details:

Place of Origin: China
Brand Name: JBNR

Payment & Shipping Terms:

Minimum Order Quantity: Negotiation
Price: Negotiable
Packaging Details: standard wooden case or as customer required
Delivery Time: 15days
Payment Terms: Western Union, L/C, T/T
Detailed Product Description
Material: Pure Molybdenum Purity: Mo≥99.95%
Flatness: ≤2% Dimension: Thickness≥0.1
Application: High Temperature Furnace
High Light:

molybdenum plate

,

molybdenum rod

High Purity Molybdenum Blank / Plate / Sheet For Hydrogen-atmosphere Furnace





Description:



1.Density: 10.2
2.Surface roughness: < 1.6

3.Purity:>=99.95%

4.Application temperature environment:1500~1800



Dimensions and tolerances



thickness
(mm)
tolerance
(mm)
width
(mm)
tolerance
(mm)
length
(mm)
tolerance
(mm)
quality flatness
in %
2.000 +/- 0.150 500.0 +/- 0.80 1000 +2/-0 hot rolled, pickled <1%
3.000 +/- 0.300 400.0 +/- 0.80 800 +2/-0 hot rolled, pickled <1%
5.000 +/- 0.200 400.0 +/- 1.00 700 +2/-0 hot rolled, pickled <1%
10.000 +/- 0.500 400.0 +/- 1.50 500 +2/-0 hot rolled, pickled <1%
20.000 +/- 1.000 350.0 +/- 1.50 500 +2/-0 hot rolled, pickled <1%
30.000 +/- 1.000 350.0 +/- 1.50 500 +2/-0 hot rolled, pickled <1%
40.000 +/- 1.000 300.0 +/- 1.50 400 +2/-0 hot rolled, pickled <1%



Application:



The surface color of the molybdenum blank (mo blank; moly blank) is silver-gray or in gray metallic luster.
It is mainly used for rolling molybdenum plates, molybdenum wafer and deep processing wire and sheet, and smelting additives.

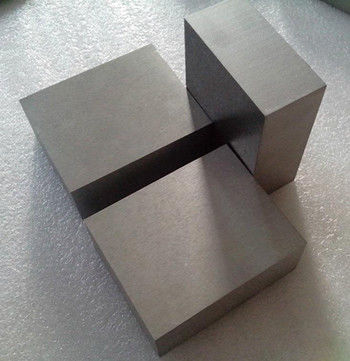

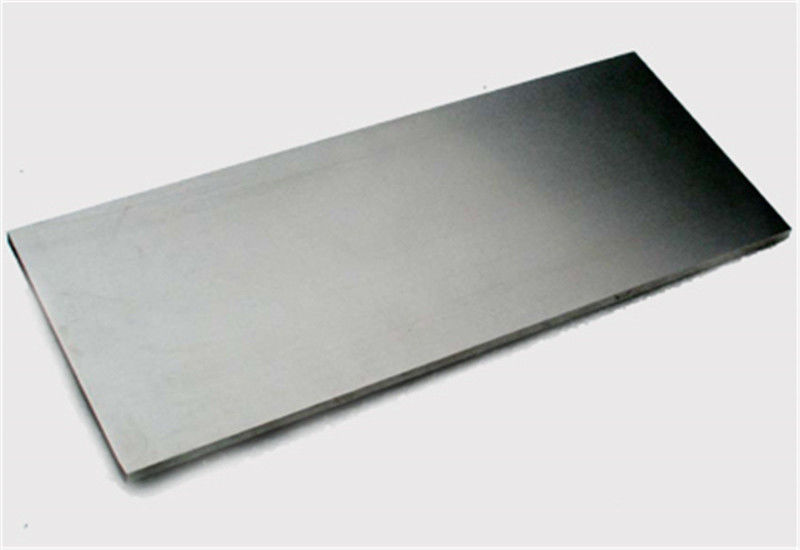

Product picture:

High Purity Molybdenum Blank / Moly Plate For Hydrogen - Atmosphere Furnace
