Longlife Hermetic Packages Electronics Cu - Mo - Cu CMC Sandwich Heat Sink

Large Image : Longlife Hermetic Packages Electronics Cu - Mo - Cu CMC Sandwich Heat Sink

Product Details:

Place of Origin:	CHINA
Brand Name:	JBNR
Model Number:	CMC111,CMC121,CMC131,CMC141,CMC13/74/13

Payment & Shipping Terms:

Packaging Details:	as customer required
Delivery Time:	15days
Payment Terms:	L/C, , T/T, Western Union

Contact Now

Detailed Product Description

Material:	Copper/moly/copper	Density:	9.75
CTE:	6	TC:	180-200
Plating:	Nickel And Gold	Application:	Microwave Carriers
High Light:	tungsten copper heat spreader , copper molybdenum heat base

Cu-Mo-Cu (CMC) Sandwich Heat Sink of Electronic Packing Materials

Description:

Cu/Mo/Cu(CMC) is a sandwich composite including a molybdenum core layer and two copper clad layers. It has tailorable CTE, high thermal conductivity and high TC.All types of Cu/Mo/Cu sheets can be stamped into components.

Advantages:

1.Can be stamped into components
2.Strong interface bonding resist to 850℃ heat shock repeatedly
3.High thermal conductivity

Product Properties:

Grade	Density g/cm³	Coefficient of thermal Expansion ×10^-6(20℃)	Thermal conductivity W/(M·K)
CMC111	9.32	8.8	305(XY)/250(Z)
CMC121	9.54	7.8	260(XY)/210(Z)
CMC131	9.66	6.8	244(XY)/190(Z)
CMC141	9.75	6	220(XY)/180(Z)
CMC13/74/13	9.88	5.6	200(XY)/170(Z)

Application:

Typical Applications: Microwave carriers and heat sinks, BGA Packages, LED packages.GaAs device mount.

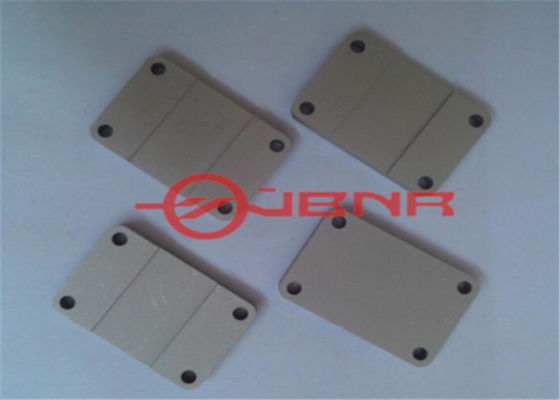

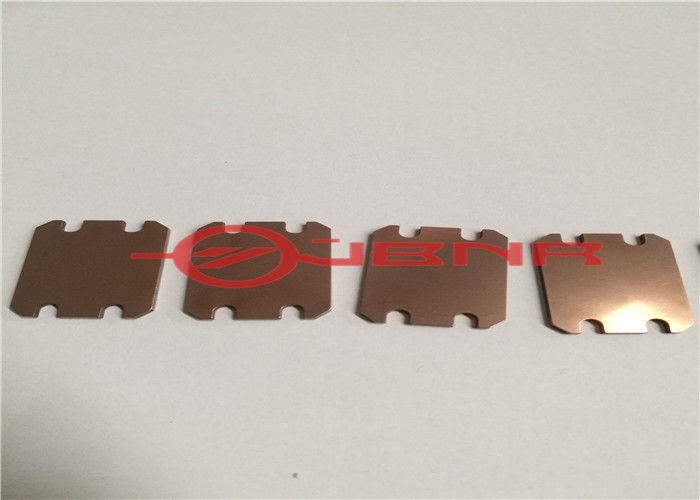

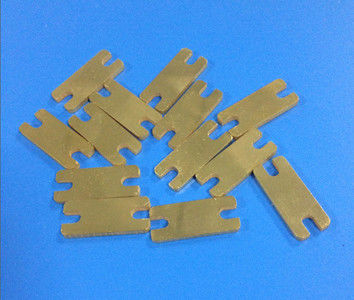

Product picture:

Longlife Hermetic Packages Electronics Cu - Mo - Cu CMC Sandwich Heat Sink

Tag:

tungsten copper heat spreader,

copper molybdenum heat base
