Product Details:
Payment & Shipping Terms:
|
| Material: | 70WCu, 75WCu, 80WCu | Density: | 14.8g/cc |
|---|---|---|---|
| Hardness: | 38HRB | Grade: | 10W3 |
| Application: | Automotive Industry | Electric Conductivity: | 94% IACS |
| High Light: | tungsten welding electrodes,copper welding electrode |
||
Superior Wear Resistance And Strength At Elevated Temperatures Copper Tungsten RWMA Class 11 Copper
Description:
For resistance welding, the parts will be pressed and heated under high current until the parts are joined together.
And for welding, the force between the electrode and the parts are large. Some of them can reach to 450 MPa.
Uncer this process, it rises great challenge for the welding electrodes.
We make welding electrodes from refractory metal like tungsten, molybdenum, tungsten alloy and molybdenum alloy.
These refractory metals have high melting point which can withstand high temperature and they also have good electrical conductivity.
For joint method between shaft and our refractory metal, we can offer braze welding and also back casting.
Our products can be used for spot welding, projection welding and also thermode welding.
| Content(%wt.) | Density(g/m³) | Electrical conductivity(%IACS) | Hardness(HRB) | Grade | Application |
| Cr:0.6-1% | 8.9 | 85 | 70 | C18200 | shank |
| Cr:0.6-1.5%;Zr:0.05-0.25%;Cu:balance | 8.9 | 80 | 80 | C18150 | shank |
| 75W25Cu | 14.5 | 94 | 38 | 10W3 | face |
For different material, we have different materials to choose. It can ensure that you get the best material for your application.
| Material to weld | Material of electrode |
| uncoated steel | CuCrZr / W |
| stainless steel | CuCrZr / WCu |
| coated steel | CuCrZr / Mo / W / WCu |
| pure copper | W / Mo / WCu |
| brass (CuZn / Tin Bronze CuSn) | CuCrZr / Mo / W / WCu |
| other Cu alloys | CuCrZr / Mo / W / WCu |
| Cu + Cu alloys coated | W / Mo / WCu |
| other non-iron metals | CuCrZr / Mo / W / WCu |
| precious metals | CuCrZr / Mo / W / WCu |
| refractory metals | W |

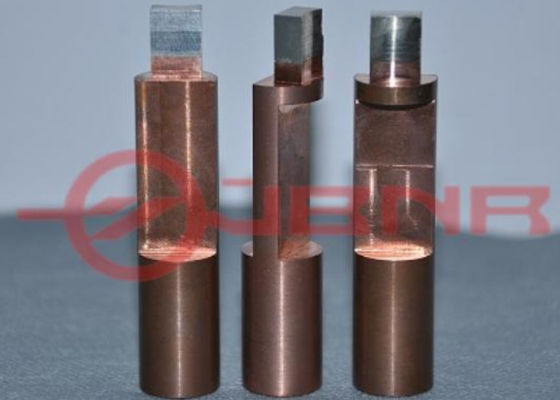

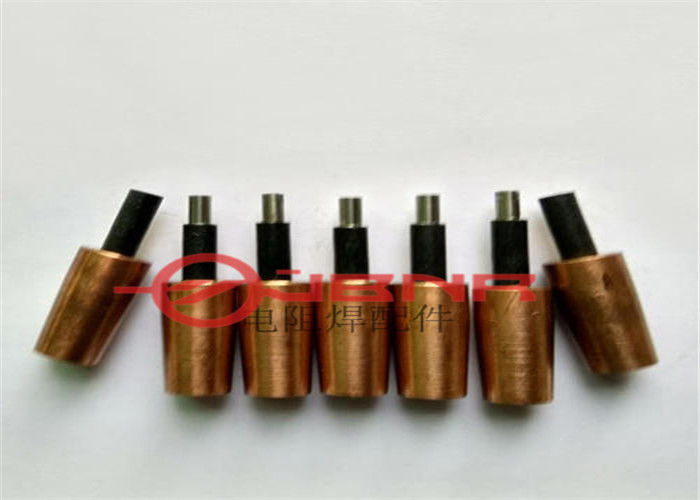

Product picture:
