Product Details:
Payment & Shipping Terms:
|
| Material Standard: | ASTM B392-98 | Material Grade: | RO4200-1, RO4210-2 |
|---|---|---|---|
| Purity: | ≥ 99.95% | Tensile Strength : | 18000 Psi, 125 MPa |
| Yield Strength : | 12000 Psi, 85 MPa | Dimension: | 4~65mm Diameter,200~1500mm Length |
| High Light: | niobium sheet,niobium plate |
||

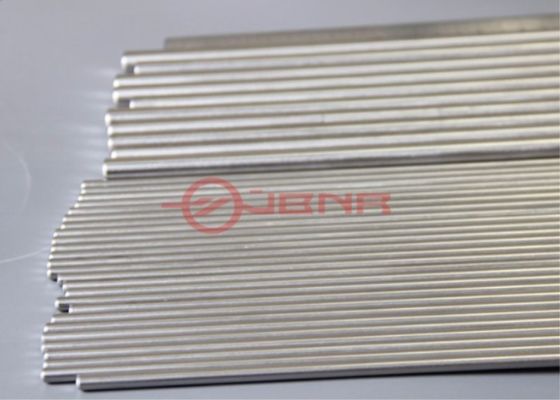

Niobium Products Columbium Rod 99.95% Purity For Reaction Still Application ASTM B392-98
1.Description
With high melting point, excellent anti-corrosion property and workability in cold environment, Nb and Nb alloy tube, rod and wire are widely used in chemistry, electronics, aviation and aerospace industry. They can be applied as nozzles and structural parts for airplane engines, inside elements and protection material for nuclear reactor, anti-corrosion parts under strong acid or environment.
By adding zirconium in niobium, the hardness and antioxidant properties can be greatly improved. A large quantity is be used in high pressure sodium lamp and anode leads for capacitors.
2.Application
Niobium rod are widely used in chemistry, electronics, aviation and aerospace industry
3.Specification
Chemical composition
| Grade | Chemical composition ,maximum | ||||||||||||
| Fe | Si | Mo | W | Ti | Cr | Ta | Ni | O | C | H | N | Nb | |
| Nb1 | 0.005 | 0.005 | 0.010 | 0.010 | 0.002 | 0.002 | 0.10 | 0.005 | 0.020 | 0.020 | 0.001 | 0.01 | Balance |
| Nb2 | 0.01 | 0.005 | 0.010 | 0.020 | 0.005 | 0.005 | 0.25 | 0.005 | 0.040 | 0.030 | 0.005. | 0.025 | Balance |
