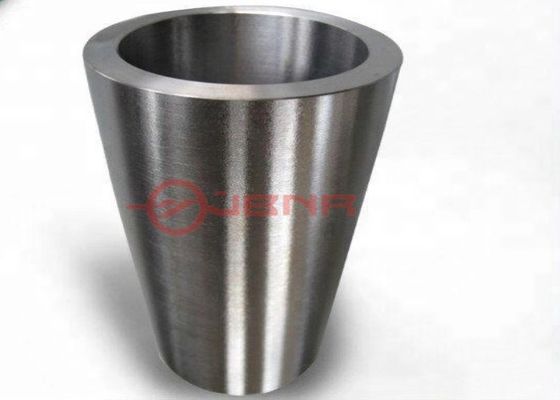

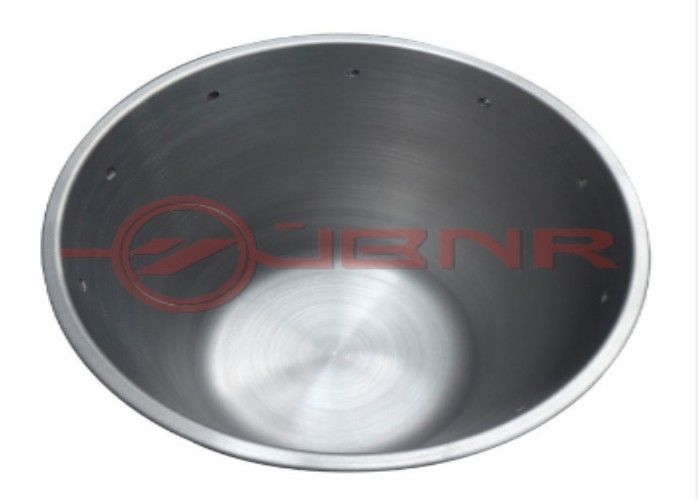

Tungsten Crucible / Tube High Temperature Furnace Spare Parts For Sapphire Growth Process

China Tungsten Crucible / Tube High Temperature Furnace Spare Parts For Sapphire Growth Process supplier
Tungsten Crucible / Tube High Temperature Furnace Spare Parts For Sapphire Growth Process supplier Tungsten Crucible / Tube High Temperature Furnace Spare Parts For Sapphire Growth Process supplier

Large Image :  Tungsten Crucible / Tube High Temperature Furnace Spare Parts For Sapphire Growth Process

Product Details:

Place of Origin: China
Brand Name: JBNR
Certification: ISO9001:2008
Model Number: As per customer's request

Payment & Shipping Terms:

Minimum Order Quantity: Negotiation
Price: Negotiable
Packaging Details: plywood box with foam sheet inside
Delivery Time: 15-25days
Supply Ability: 1000 Kilogram / Kilograms per Month
Detailed Product Description
Density: ≥18.2g/cm3 Purity: ≥99.95%
Application: For Sapphire Growth Process Application Temperature Environment: 2300℃
Dimension: Customized Condition: Sinter, Finished Sinter
High Light:

mo sheet

,

molybdenum sheet

High Temperature Furnace 99.95% min Tungsten Crucible and Tube For Sapphire Growth Process



Ⅰ,Physical and chemical properties



1 Purity :W≥99.95%;

2 Density:≥18.2g/cm3

3 Application temperature environment:2300℃.



Ⅱ,Measurements and tolerances



Unit:mm

Delivery condition Specification Tolerance Thickness Roughness (μm)
Diameter Height Diameter Height
Sinter 10~500 10~750 ±5.0 ±5.0 8~20
Finished sinter 10~450 10~550 ±0.5 ±1.0 7~18 <2.5



Special sizes can be manufactured based on customers' requirements



Ⅲ,Manufacturing process and equipment



Item

Process Equipment Quality Check point
1 Tungsten powder   1 Purity of tungsten powder
2 Sieving High frequency vibrating screen 2 Fsss,HB
3 Mixed powder V shape mixer 3 Green strength
4 Isostatic pressing Isostatic pressing machine 1 Measurement of rough-processed billet
5 Rough billet lathing CNC vertical turning machine 2 Surface quality of rough-processed billet
6 IF sintering IF induction sintering furnace 1 Outside measurements of finished product
7 Competitive products lathing High-accuracy vertical turning machine 2 Surface quality and roughness of finished product, density
8 Package   3 Show certificate of quality



Ⅳ,Application



Since the melting point of tungsten has reached 3410℃, tungsten crucible (W crucible; wolfram crucible; wolfram barrel; W barrel; wolfram tube, W tube; W pipe; wolfram pipe; wolfram sleeve; tungsten sleeve; wolfram flange; tungsten flange; W flange; wolfram funnel; tungsten funnel) is widely applied in industry furnace such as sapphire growth furnace, quartz glass melting furnace, and rare earth smelting furnace.



The temperature in working environment of tungsten crucible is above 2000℃.

For sapphire crystal growth furnace, high-purity, high- density, no internal -crack tungsten crucible with other features of exact measurement and smooth surface has decisive influence on success ratio of seed growth, quality control of pulling crystal, metamictization pot-committed and service life during sapphire growth process.
