| Density: | 8.57g/cm3 | Purity: | 99.95% |
|---|---|---|---|
| Standard: | ASTM B394 | Diameter: | Custmomized |
| Trial Order: | Accepted | Surface Condition: | Polished, Alkaline Cleaning |
| Color: | Silver Grey | Application: | Chemical Industry, Electronics Industry, Aviation |
| High Light: | niobium sheet,niobium rod |
||

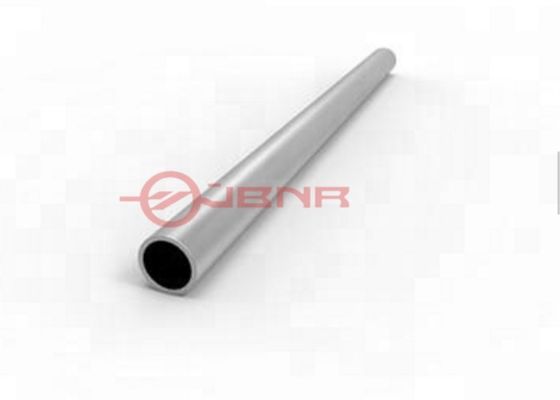

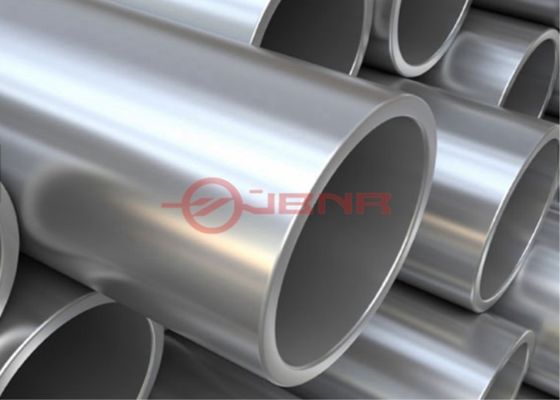

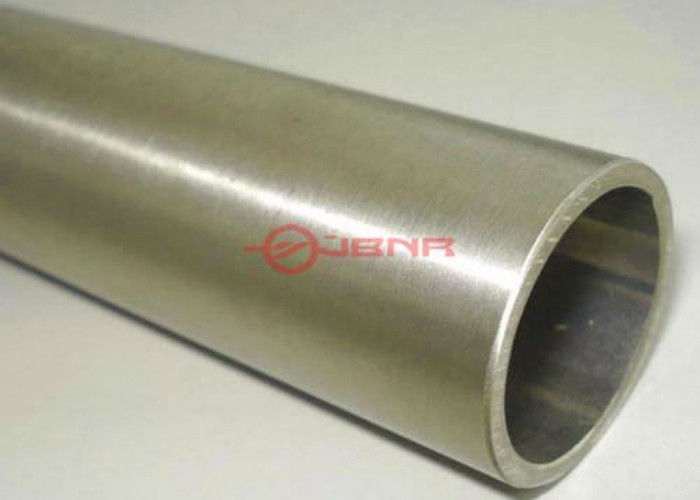

Niobium Products Customized Size ASTM B394 Bright Surface Purity Niobium Tube
Specification
Niobium and Niobium tube
1.Material: RO4200-1, RO4210-2
2.The Size of niobium tube: OD1.0-150mm*TK 0.2-5.0mm*L
3.Length:200mm-9000mm
4.Standard: As per ASTM B394-98
5.Purity: >=99.9% or 99.95% with best Niobium price
6. Table 1. Grade of Niobium tube
| Grade | Suplying state | Diameter | Lengtha | Voluntary Standers |
|
Nb1 Nb2 Nb3 Nb4 |
Cold state(Y) Annealedb(M) |
3.0-6.5 >6.5-10.0 >10-18 |
>500 | ASTM B392-03 |
|
Thermal processing state(R) Annealedb(M) |
>18-25 >25-40 >40-50 >50-65 |
|||
|
FNb1 FNb2 |
Thermal processing state(R) Annealedb(M) |
3.5-5.0 >5.0-12 |
>500 >300
|
|
| NbHf10-1 |
Thermal processing state(R) Annealedb(M) |
20-80 | 500-2000 | |
|
Note : the length of Annealing niobium tube being supplied is not greater than 2500mm.
|
||||
7. Table 2. Niobium tube Chemical PPM
| chemistry% | ||||||||||||
| designation | chief component | impurities maximum | ||||||||||
| Nb | Fe | Si | Ni | W | Mo | Ti | Ta | O | C | H | N | |
| Nb1 | Remainder | 0.004 | 0.003 | 0.002 | 0.004 | 0.004 | 0.002 | 0.07 | 0.01 | 0.004 | 0.0012 | 0.002 |
| Nb2 | Remainder | 0.005 | 0.005 | 0.005 | 0.01 | 0.01 | 0.004 | 0.1 | 0.015 | 0.01 | 0.0015 | 0.01 |
8.Table 3. Mechanical requirements of Niobium tube (annealed condition)
| Grade | Tensile strengthδbpsi (MPa),≥ | Yield strength δ0.2, psi (MPa),≥ | Elongation in 1"/2" gage length,%,≥ |
|
RO4200-1 RO4210-2 |
18000 (125) | 10500 (73) |
25
|
| Special requirements of niobium pipe to be agreed on by the supplier and buyer of negotiations | |||
