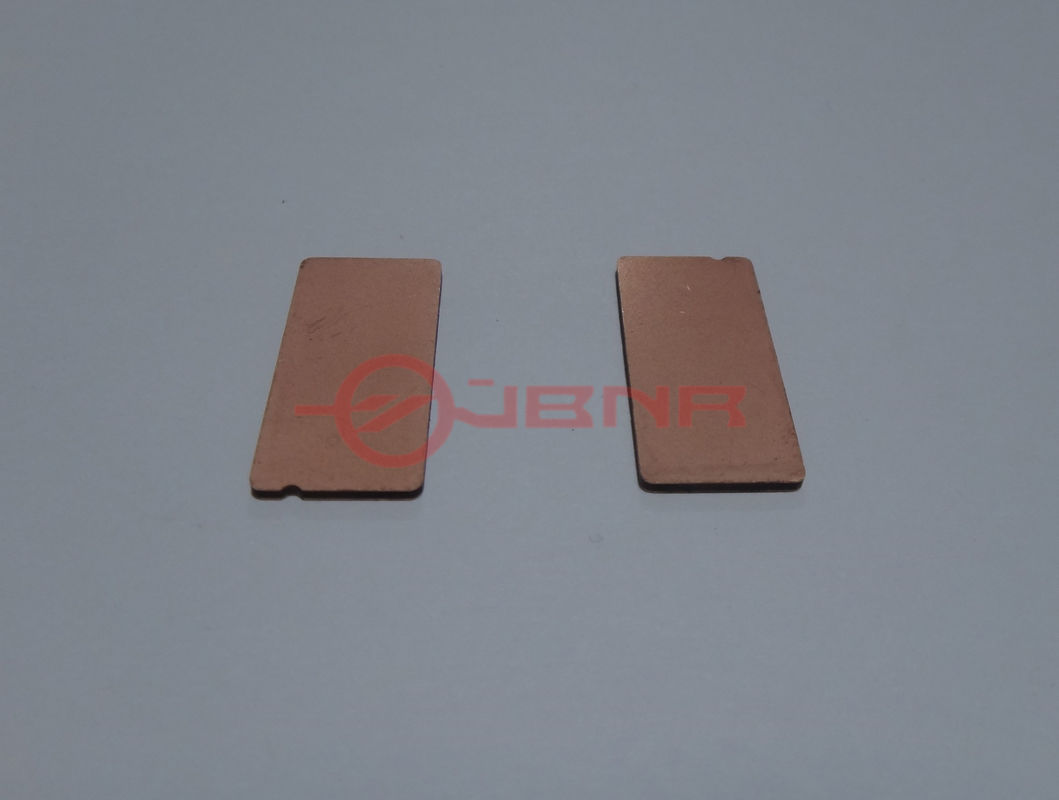

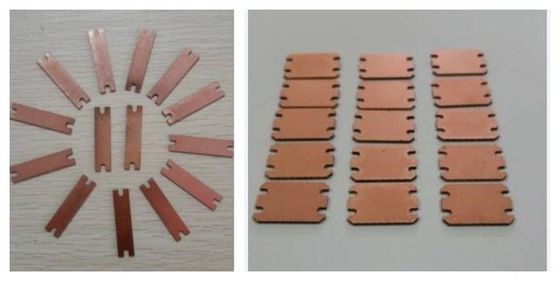

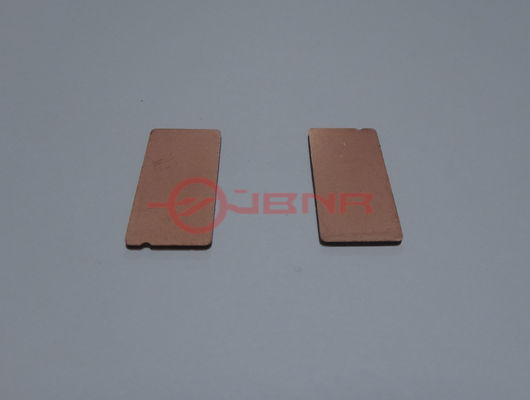

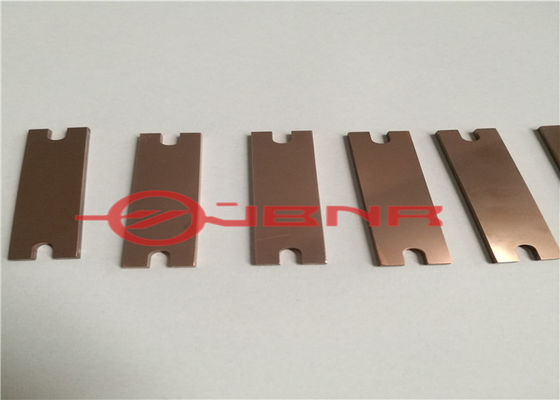

High Thermal Expansion Copper Molybdenum Heat Base Cu / MoCu / Cu ( CPC ) Sheet

Large Image : High Thermal Expansion Copper Molybdenum Heat Base Cu / MoCu / Cu ( CPC ) Sheet

Product Details:

Place of Origin:	CHINA
Brand Name:	JBNR
Model Number:	CPC141,CPC232,CPC300

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiable
Packaging Details:	as customer required
Delivery Time:	15days
Payment Terms:	L/C, , T/T, Western Union

Contact Now

Detailed Product Description

Material:	Copper/moly Copper/copper	Density:	9.2
CTE:	9.5	TC:	260
Application:	Power Device Package	Plating:	Nickel And Gold
High Light:	molybdenum element , mocu heat sink

High Thermal Expansion Molybdenum Copper Cu/MoCu/Cu(CPC) sheet

Description:

CPC is a sandwich composite, CMC including a molybdenum core layer and two copper clad layers, CPC including a Mo-Cu alloy core layer and two copper clad layers . They have different CTE in X and γ direction, with higher thermal conductivity than that of W (Mo)-Cu.

Advantages:
1.More easily to be stamped into components than CMC
2.Very strong interface bonding which can repeatedly resist 850℃ heat shock
3.Higher thermal conductivity and lower cost

4.No magnetism

Product Properties:

Grade

Density g/cm³

Coefficient of thermal

Expansion ×10^-6(20℃)

Coefficient of thermal

Expansion ×10^-6(20℃)

CPC141

9.5

7.3

280(XY)/170(Z)
