Gold WCu10 Copper Tungsten Plate Thermal Control Panels / Spacer / Shim

China Gold WCu10 Copper Tungsten Plate Thermal Control Panels / Spacer / Shim supplier
Gold WCu10 Copper Tungsten Plate Thermal Control Panels / Spacer / Shim supplier Gold WCu10 Copper Tungsten Plate Thermal Control Panels / Spacer / Shim supplier Gold WCu10 Copper Tungsten Plate Thermal Control Panels / Spacer / Shim supplier Gold WCu10 Copper Tungsten Plate Thermal Control Panels / Spacer / Shim supplier

Large Image :  Gold WCu10 Copper Tungsten Plate Thermal Control Panels / Spacer / Shim

Product Details:

Place of Origin: CHINA
Brand Name: JBNR
Certification: ISO9001
Model Number: 50WCu,75WCu,80WCu,85WCu,90WCu

Payment & Shipping Terms:

Minimum Order Quantity: Negotiation
Price: Negotiable
Packaging Details: as customer required
Delivery Time: 15days
Payment Terms: L/C, , T/T, Western Union
Detailed Product Description
Material: Tungsten Copper Density: 17.0
CTE: 6.5 TC: 170-180
Plating: Gold Application: High Power Device
High Light:

copper base plate

,

copper block heat sink

WCu10 Thermal Control Panels / Spacer / Shim For High Power Device

Description:

CuW, also called copper tungsten, tungsten copper and W-Cu, is a powdered metal product consisting of a mixture of copper and tungsten (a.k.a. wolfram).

Our heat sink are composites of tungsten and copper. By adjusting the content of tungsten, we can have its coefficient of thermal expansion (CTE) designed to match those of materials such as ceramics (Al2O3, BeO), semiconductors (Si), and metals (Kovar), etc.


Advantages:

High thermal conductivity

Excellent hermeticity

Excellent flatness, surface finish, and size control

Semi-finished or finished (Ni/Au plated) products available


Product Properties:

Type Composition Properties
  Tungsten Content Density CTE Thermal Conductivity
W90Cu 90 ± 1 wt % 17.0 g/cm3 6.5 ppm/K 180 - 190 W/m.K
W85Cu 85 ± 1 wt % 16.3 g/cm3 7.0 ppm/K 190 - 200 W/m.K
W80Cu 80 ± 1 wt % 15.6 g/cm3 8.3 ppm/K 200 - 210 W/m.K
W75Cu 75 ± 1 wt % 14.9 g/cm3 9.0 ppm/K 220 - 230 W/m.K



Application:

Applies to high-power device package of materials, such as substrates; high-performance lead frame; military and civilian thermal control devices such as thermal control panels and radiators.

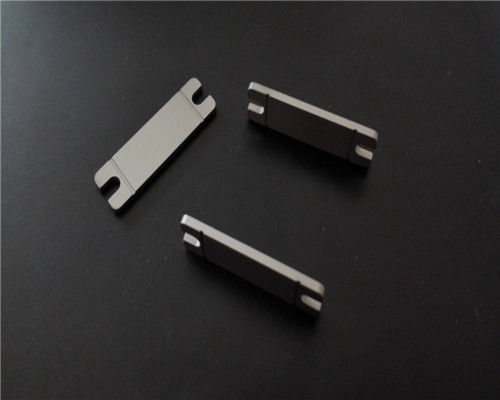

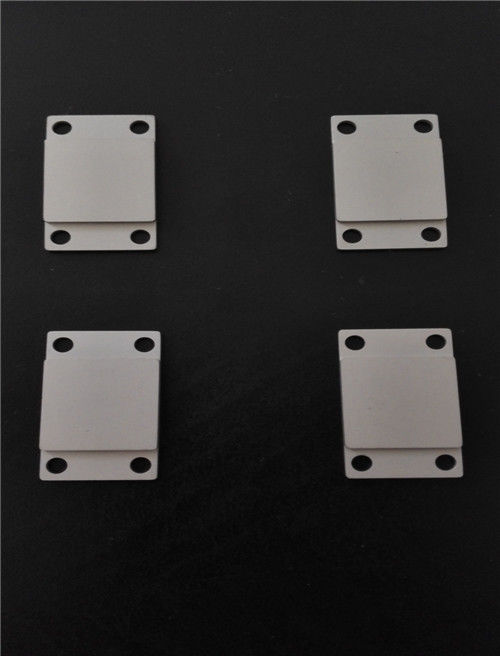

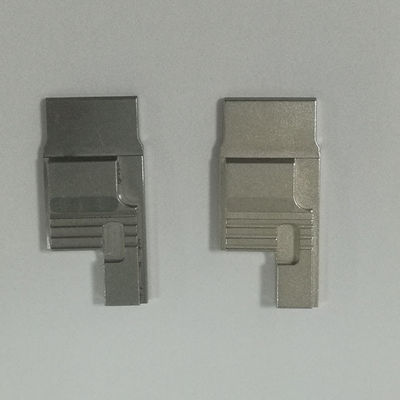

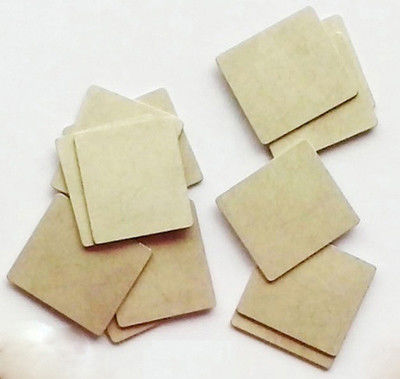

Product picture:

Gold WCu10 Copper Tungsten Plate Thermal Control Panels / Spacer / Shim
