Tungsten And Molybdenum Welding Electrodes For Resistance Welding , Spot Welding

China Tungsten And Molybdenum Welding Electrodes For Resistance Welding , Spot Welding supplier
Tungsten And Molybdenum Welding Electrodes For Resistance Welding , Spot Welding supplier Tungsten And Molybdenum Welding Electrodes For Resistance Welding , Spot Welding supplier

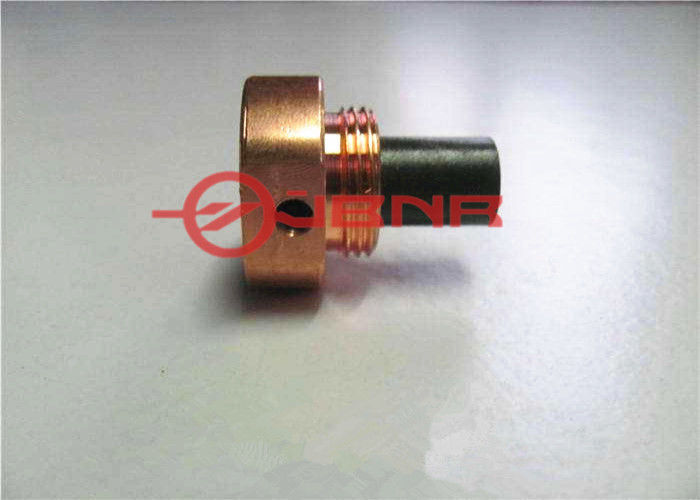

Large Image :  Tungsten And Molybdenum Welding Electrodes For Resistance Welding , Spot Welding

Product Details:

Place of Origin: CHINA
Brand Name: JBNR
Certification: ISO9001
Model Number: WEWM006

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Price: Negotiable
Packaging Details: as customer required
Delivery Time: 15days
Payment Terms: L/C, , T/T, Western Union, D/A
Supply Ability: 5 tons
Detailed Product Description
Material: 70WCu, 75WCu, 80WCu Density: 14.8g/cc
Hardness: 38HRB Grade: 10W3
Application: Automotive Industry Electric Conductivity: 94% IACS
High Light:

tungsten welding electrodes

,

copper welding electrode



Tungsten And Molybdenum Electrodes For Resistance Welding, Spot Welding



Description:



For resistance welding, the parts will be pressed and heated under high current until the parts are joined together.

And for welding, the force between the electrode and the parts are large. Some of them can reach to 450 MPa.

Uncer this process, it rises great challenge for the welding electrodes.



We make welding electrodes from refractory metal  like tungsten, molybdenum, tungsten alloy and molybdenum alloy.

These refractory metals have high melting point which can withstand high temperature and they also have good electrical conductivity.



For joint method between shaft and our refractory metal, we can offer braze welding and also back casting.



Our products can be used for spot welding, projection welding and also thermode welding.

Product Properties:
Content(%wt.) Density(g/m³) Electrical conductivity(%IACS) Hardness(HRB) Grade Application
Cr:0.6-1% 8.9 85 70 C18200 shank
Cr:0.6-1.5%;Zr:0.05-0.25%;Cu:balance 8.9 80 80 C18150 shank
75W25Cu 14.5 94 38 10W3 face

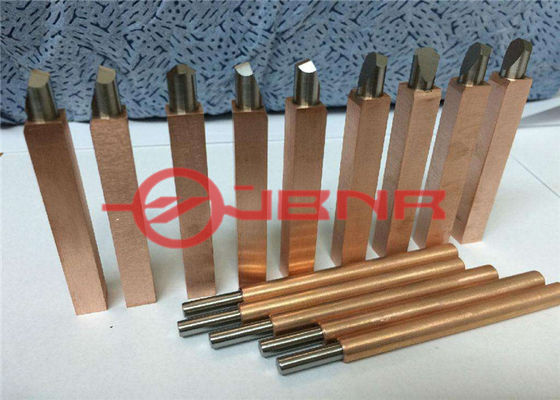

Product picture:

Tungsten And Molybdenum Welding Electrodes For Resistance Welding , Spot Welding
