| Material: | 80% Tungsten ,20% Copper | Sized: | Customized |
|---|---|---|---|
| Density: | 15.15g/cm3 | Hardness: | 220HB Kgf/mm2≥ |
| Resistivity: | 5.0µΩ.cm≤ | IACS: | 34%≥ |
| Bending Strength: | 980Mpa | Application: | High-voltage Electrode |
| High Light: | copper tungsten electrodes,copper tungsten |
||

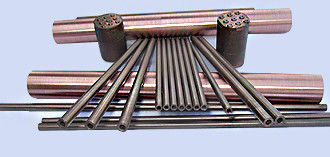

Reliable quality Wolfram Copper alloy High-voltage electrode W80Cu20
Tungsten copper is a good use of high-purity tungsten metal powder and high purity characteristics of the plasticity of copper powder, the advantages of high conductivity, the static pressure molding, high temperature sintering, melting refined copper from the process of composite materials. Arc off a good performance, good thermal conductivity, thermal expansion of small, high-temperature non-softening, high-intensity, high-density, high hardness.
Advantages
Higer thermal conductivity
Low thermal expansion
High arc resistance combined with good electrical conductivity
Applications
Electrodes for resistance welding
Heat sinks as passive cooling elements of electronic devices
Electrodes in electric spark erosion cutting machines
Arcing contacts and vacuum contacts in high and medium voltage breakers or vacuum interruptions
Copper Tungsten Technical Data
| Grade No | Chemical | Composition % | Density | Hardness | Resistivity | IACS | Bending Strength | |
| Cu | Impurity | Wolfram | g/cm3≥ | HB Kgf/mm2≥ | µΩ.cm≤ | %≥ | Mpa≥ | |
| W50/Cu50 | 50±2.0 | 0.5 | Balance | 11.85 | 115 | 3.2 | 54 | |
| W55/Cu45 | 45±2.0 | 0.5 | Balance | 12.3 | 125 | 3.5 | 49 | |
| W60/Cu40 | 40±2.0 | 0.5 | Balance | 12.75 | 140 | 3.7 | 47 | |
| W65/Cu35 | 35±2.0 | 0.5 | Balance | 13.3 | 155 | 3.9 | 44 | |
| W70/Cu30 | 30±2.0 | 0.5 | Balance | 13.8 | 175 | 4.1 | 42 | 790 |
| W75/Cu25 | 25±2.0 | 0.5 | Balance | 14.5 | 195 | 4.5 | 38 | 885 |
| W80/Cu20 | 20±2.0 | 0.5 | Balance | 15.15 | 220 | 5.0 | 34 | 980 |
| W85/Cu15 | 15±2.0 | 0.5 | Balance | 15.9 | 240 | 5.7 | 30 | 1080 |
| W90/Cu10 | 10±2.0 | 0.5 | Balance | 16.75 | 260 | 6.5 | 27 | 1160 |
