Thin Thickness Copper Molybdenum Alloy Carrier Wafer For High Power Led

China Thin Thickness Copper Molybdenum Alloy Carrier Wafer For High Power Led supplier
Thin Thickness Copper Molybdenum Alloy Carrier Wafer For High Power Led supplier Thin Thickness Copper Molybdenum Alloy Carrier Wafer For High Power Led supplier

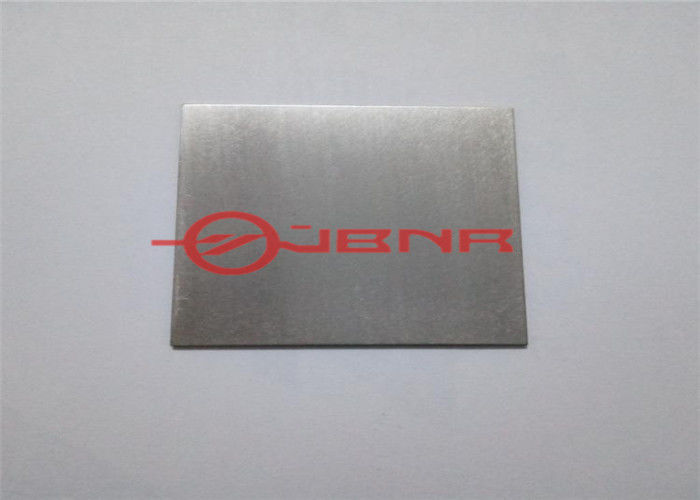

Large Image :  Thin Thickness Copper Molybdenum Alloy Carrier Wafer For High Power Led

Product Details:

Place of Origin: China
Brand Name: JBNR
Certification: ISO9001
Model Number: HCMC025

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Price: Based on dimensions
Packaging Details: Wooden boxes
Delivery Time: 20 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 5 tons a month
Detailed Product Description
Grade:: Mo80Cu20, Mo75C25, Mo70Cu30, Mo60Cu40,Mo50Cu50 Surface:: Plated Or Unplated
Dimensions:: Based On Customer Requirements Plating:: Nickel Plating And Gold Plaing
Shape:: Shims Or Sheets Or Fabricated Parts Name: Thin Thickness Molybdenum Copper Carrier Wafer
High Light:

copper base plate

,

copper block heat sink



Thin Thickness Molybdenum Copper Carrier Wafer For High Power Led



Description:

Molybdenum copper alloy is a composite material of molybdenum and copper which has adjustable thermal expansion coefficient and thermal conductivity. But the density of molybdenum copper is much smaller than tungsten copper. Therefore, molybdenum copper alloy is more suitable for aerospace and other fields.



Advantages:

1. This molybdenum copper base plates feature high thermal conductivity and excellent hermeticity.

2. Molybdenum copper flanges are 40% lighter than comparable tungsten copper composite.



Product Properties:

Grade Mo Content Density g/cm3

Coefficient of thermal

Expansion ×10-6 (20℃)

Thermal conductivity W/(M·K)
70MoCu 70±2% 9.8 7 200(25℃)/196(100℃)
60MoCu 60±2% 9.66 7.5 222(25℃)/217(100℃)
50MoCu 50±2% 9.5 10.2 250(25℃)/220(100℃)





Application:

Molybdenum copper heat spreaders are widely used in applications such as microwave carriers, ceramic substrate carriers, laser diode mounts, optical packages, power packages, butterfly packages and crystal carriers for solid state lasers, etc.
