Product Details:
Payment & Shipping Terms:
|
Material: | Molybdenum Copper | Density: | 9.8 |
---|---|---|---|
CTE: | 7.3 | TC: | 190-200 |
High Light: | copper base plate,copper block heat sink |
Polished Molybdenum Copper Wafer / Disk Mo70Cu30 Heat Sink
Description:
Mo-Cu heat sink material is a composite of molybdenum and copper, its thermal expansion coefficient and thermal conductivity can be adjusted to match many different materials, it has lower density, but its CTE is higher than W-Cu.
Advantages:
1. This molybdenum copper carrier/heat sink feature high thermal conductivity and excellent hermeticity.
2. Molybdenum copper carriers are 40% lighter than comparable tungsten copper composite.
Product Properties:
Grade | Mo Content | Density g/cm3 |
Coefficient of thermal Expansion ×10-6 (20℃) |
Thermal conductivity W/(M·K) |
85MoCu | 85±2% | 10.0 | 7 | 160(25℃)/156(100℃) |
70MoCu | 70±2% | 9.8 | 7 | 200(25℃)/196(100℃) |
60MoCu | 60±2% | 9.66 | 7.5 | 222(25℃)/217(100℃) |
50MoCu | 50±2% | 9.5 | 10.2 | 250(25℃)/220(100℃) |
Application:
These composite are widely used in applications, such as, optoelectronics packages, Microwave Packages, C Packages, Laser Sub-mounts, etc.

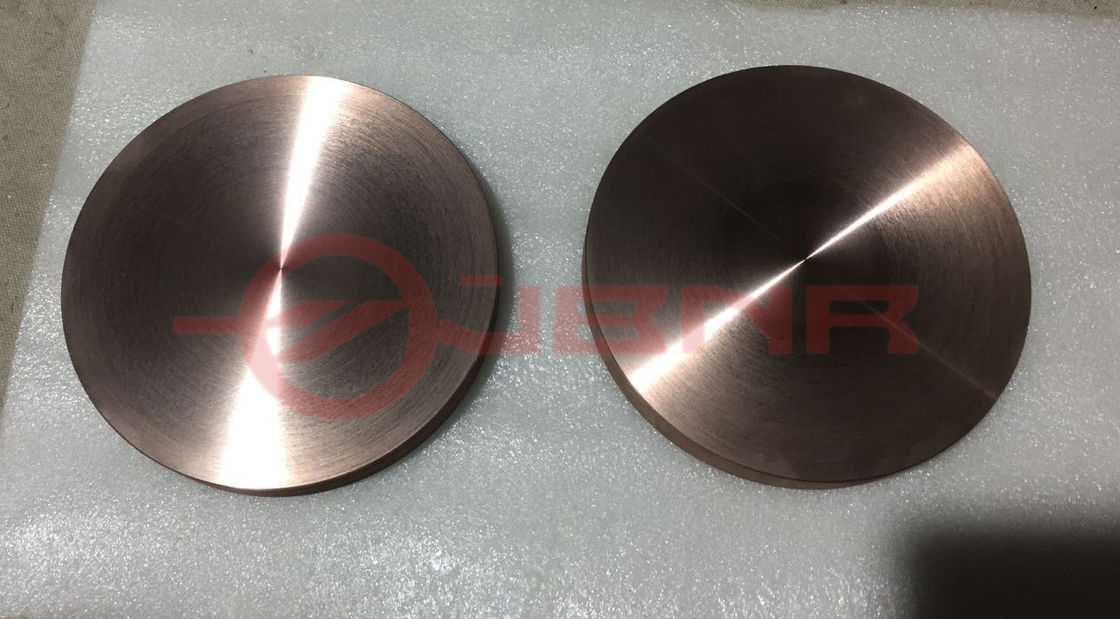

Product picture:
