Product Details:
Payment & Shipping Terms:
|
| Material: | CuCrZr | Density: | 8.9 |
|---|---|---|---|
| Application: | Battery Lead Wire Field | Conductivity: | 80 |
| HRB: | 80 | RWMA: | Class 2 |
| High Light: | tungsten welding electrodes,copper welding electrode |
||
Copper Wire Welding / Leading Wire Welding Molybdenum Faced Electrode
Description:
JBNR’s tungsten, copper-tungsten, silver tungsten, molybdenum and TZM-faced tips listed here withstand greater heat and pressure, at the expense of some conductivity. Besides being used for spot welding high resistance base metals, they are useful in achieving “heat balance” when welding dissimilar metals. We can make the standard one with taper and shank, also we can make the electrode per customer’s drawing.
| Content(%wt.) | Density(g/m³) | Electrical conductivity(%IACS) | Hardness(HRB) | Grade | Application |
| Cr:0.6-1% | 8.9 | 85 | 70 | C18200 | shank |
| Cr:0.6-1.5%;Zr:0.05-0.25%;Cu:balance | 8.9 | 80 | 80 | C18150 | shank |
| 75W25Cu | 14.5 | 94 | 38 | 10W3 | face |
Application:
leading wire welding, copper wire welding, silver part welding.(Battery lead wire field, low voltage part field)

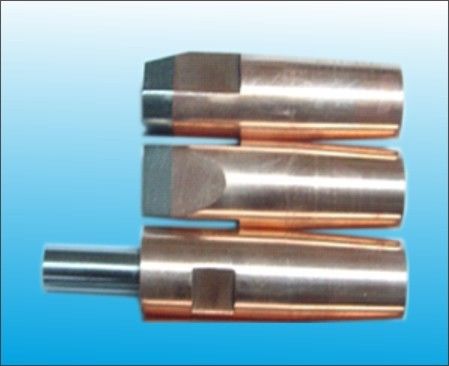

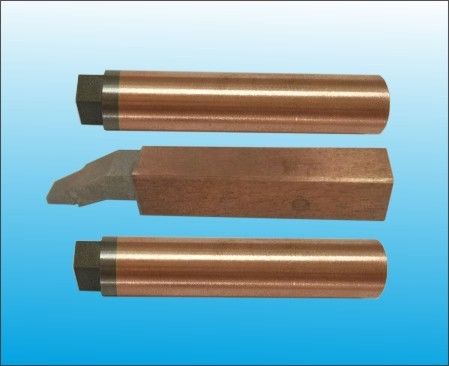

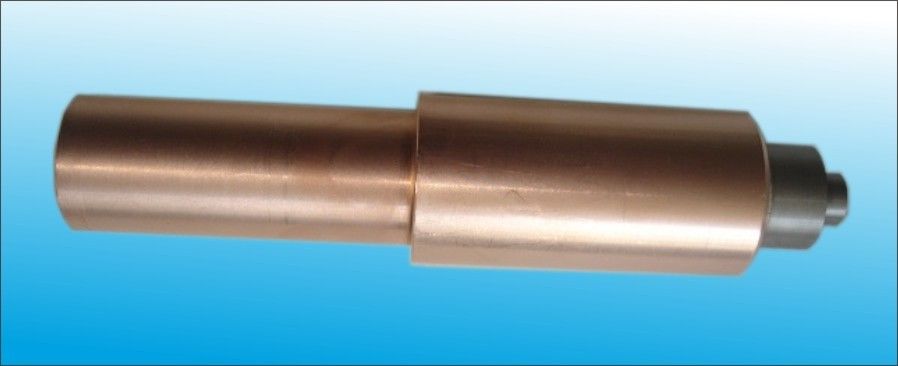

Product picture:
