| Material: | Silver Tungsten | Density: | 14.9 |
|---|---|---|---|
| Hardness: | 82HRB | Application: | Low Resistant Welding |
| Electric Conductivity: | 45% IACS | Name: | Welding Electrodes |
| High Light: | tungsten welding electrodes,copper welding electrode |
||
Silver Tungsten Faced Resistance Welding Electrode For Low Resistance Welding
Description:
JBNR’s tungsten, copper-tungsten, silver tungsten, molybdenum and TZM-faced tips listed here withstand greater heat and pressure, at the expense of some conductivity. Besides being used for spot welding high resistance base metals, they are useful in achieving “heat balance” when welding dissimilar metals. We can make the standard one with taper and shank, also we can make the electrode per customer’s drawing.
| Component(%wt) | Density(g/cm³) | Conductivity(%IACS) | Hardness(HRB) |
| W65Ag35 | 14.5 | 48 | 75 |
| W70Ag30 | 14.9 | 45 | 82 |
| W75Ag25 | 15.4 | 41 | 86 |
Application:
Low Resistance Welding

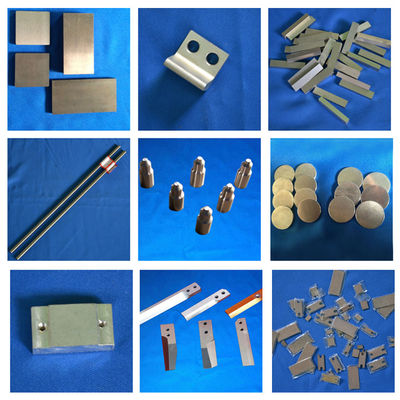

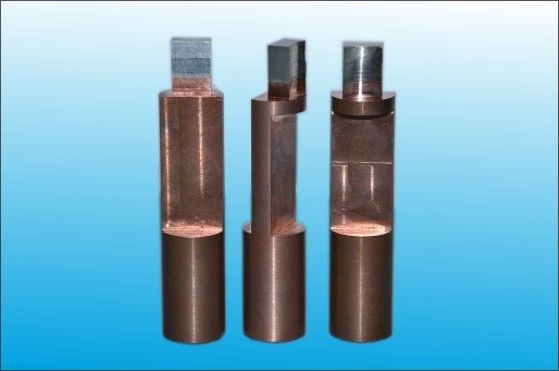

Product picture:
