Product Details:
Payment & Shipping Terms:
|
Material: | Tungsten Copper | Density: | 15.2 |
---|---|---|---|
Hardness: | 38HRB | Grade: | 10W3 |
Application: | Automotive Industry | Electric Conductivity: | 94% IACS |
High Light: | tungsten welding electrodes,copper welding electrode |
CrZrCu Shank Copper Tungsten (10W3) Faced Nut Welding Electrode
Description:
copper tungsten (10W3) faced nut welding electrode and cover (used for automotive industrial, lots of sheet and work piece need be connected by the nut. also used for wire mesh welder)
Content(%wt.) | Density(g/m³) | Electrical conductivity(%IACS) | Hardness(HRB) | Grade | Application |
Cr:0.6-1% | 8.9 | 85 | 70 | C18200 | shank |
Cr:0.6-1.5%;Zr:0.05-0.25%;Cu:balance | 8.9 | 80 | 80 | C18150 | shank |
75W25Cu | 14.5 | 94 | 38 | 10W3 | face |
Application:
automotive industrial, bridge construction etc.

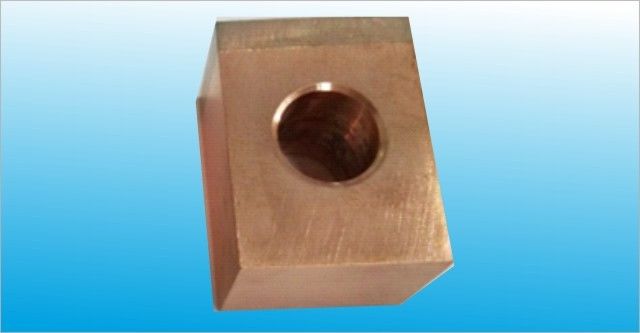

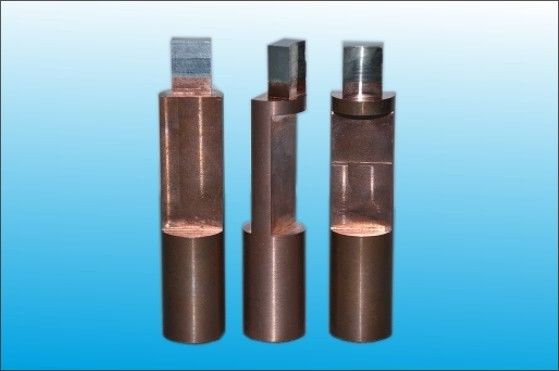

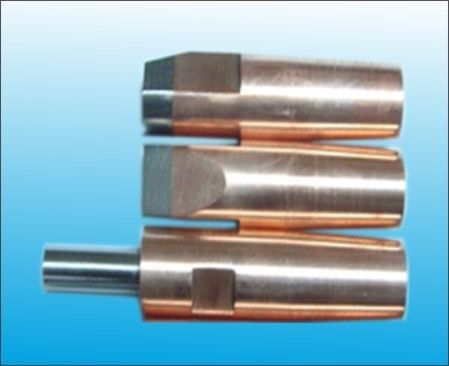

Product picture:
