Stud Nut Welding Electrode With Copper Tungsten Face , High Wear Resistance

China Stud Nut Welding Electrode With Copper Tungsten Face , High Wear Resistance supplier
Stud Nut Welding Electrode With Copper Tungsten Face , High Wear Resistance supplier Stud Nut Welding Electrode With Copper Tungsten Face , High Wear Resistance supplier Stud Nut Welding Electrode With Copper Tungsten Face , High Wear Resistance supplier

Large Image :  Stud Nut Welding Electrode With Copper Tungsten Face , High Wear Resistance

Product Details:

Place of Origin: CHINA
Brand Name: JBNR
Certification: ISO9001
Model Number: 75W25Cu

Payment & Shipping Terms:

Minimum Order Quantity: Negotiation
Price: Negotiable
Packaging Details: as customer required
Delivery Time: 15days
Payment Terms: L/C, , T/T, Western Union
Detailed Product Description
Material: Tungsten Copper Density: 15.2
Hardness: 38HRB Grade: 10W3
Application: Automotive Industry Electric Conductivity: 94% IACS
High Light:

tungsten welding electrodes

,

copper welding electrode



High Wear Resistance Stud Nut Welding Electrode With Copper Tungsten Face

Description:



In the projection welding,(such as automotive industrial, bridge construction), lots of sheet and work piece need be connected by the nut.

It need good quality nut welding electrode,not only long life time, but also high strength, high hardness and high wear resistance.

JBNR’s nut welding electrodes use the copper tungsten alloy as electrodes face material to keep the higher wear resistance and big loading endurance, with Chromium Zirconium copper shank which keep the higher electrical conductivity and thermal conductivity.

We join the copper tungsten faced and the shank with advanced technology. There is no any gap between two materials and have high welding strength.

We also supply the copper tungsten pillar. Customer can join the pillar to shank by themselves



Product Properties:
Content(%wt.) Density(g/m³) Electrical conductivity(%IACS) Hardness(HRB) Grade Application
Cr:0.6-1% 8.9 85 70 C18200 shank
Cr:0.6-1.5%;Zr:0.05-0.25%;Cu:balance 8.9 80 80 C18150 shank
75W25Cu 14.5 94 38 10W3 face





Application:

automotive industrial, bridge construction etc.

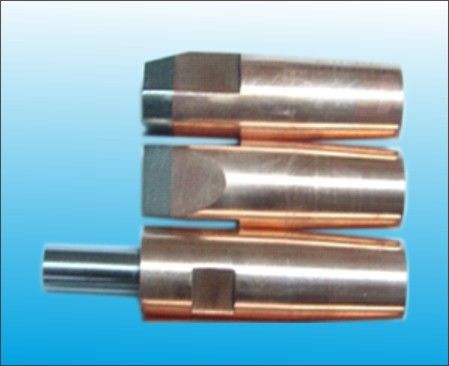

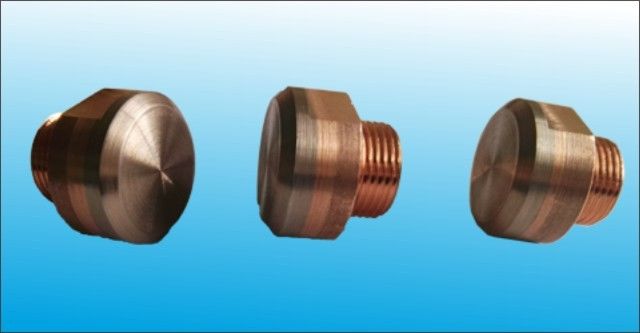

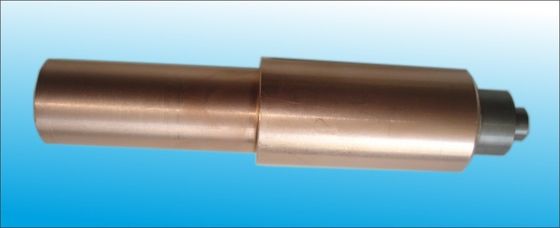

Product picture:

Stud Nut Welding Electrode With Copper Tungsten Face , High Wear Resistance
