LDMOS RF Transistor Hermetic Packaging Cu / Mo / Cu Flanges With Good Heat Dissipation

China LDMOS RF Transistor Hermetic Packaging Cu / Mo / Cu Flanges With Good Heat Dissipation supplier

Large Image :  LDMOS RF Transistor Hermetic Packaging Cu / Mo / Cu Flanges With Good Heat Dissipation

Product Details:

Place of Origin: CHINA
Brand Name: JBNR
Model Number: CMC111,CMC121,CMC131,CMC141,CMC13/74/13

Payment & Shipping Terms:

Packaging Details: as customer required
Delivery Time: 15days
Payment Terms: L/C, , T/T, Western Union
Contact Now
Detailed Product Description
Material: Copper/moly/copper Density: 9.75
CTE: 6.0 TC: 180-220



LDMOS RF Transistor Cu/Mo/Cu Flanges With Good Heat Dissipation

Description:



Cu/Mo/Cu(CMC) is a sandwich composite including a molybdenum core layer and two copper clad layers. It has tailorable CTE, high thermal conductivity and high strength. All types of Cu/Mo/Cu sheets can be stamped into components.

Advantages:

1.Can be stamped into components
2.Strong interface bonding resist to 850℃ heat shock repeatedly
3.High thermal conductivity

Product Properties:



Grade Density g/cm3

Coefficient of thermal

Expansion ×10-6 (20℃)

Thermal conductivity W/(M·K)
CMC111 9.32 8.8 305(XY)/250(Z)
CMC121 9.54 7.8 260(XY)/210(Z)
CMC131 9.66 6.8 244(XY)/190(Z)
CMC141 9.75 6 220(XY)/180(Z)
CMC13/74/13 9.88 5.6 200(XY)/170(Z)



Application:


Cu/Mo/Cu(CMC) carrier has similar applications with tungsten copper heat sinks. It can be used as thermal mounting plates, chip carriers for microwave, flanges and frames for RF, laser diode packages, LED packages, BGA packages and GaAs device mounts etc.

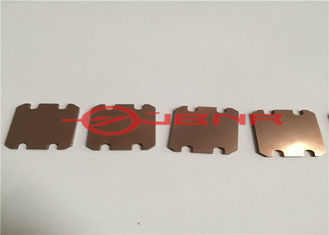

Product picture:

LDMOS RF Transistor Hermetic Packaging Cu / Mo / Cu Flanges With Good Heat Dissipation
