Low Vapor Pressure Spot Welding Electrode Tips TZM - Faced Tips Faced Electrode

China Low Vapor Pressure Spot Welding Electrode Tips TZM - Faced Tips Faced Electrode supplier
Low Vapor Pressure Spot Welding Electrode Tips TZM - Faced Tips Faced Electrode supplier Low Vapor Pressure Spot Welding Electrode Tips TZM - Faced Tips Faced Electrode supplier

Large Image :  Low Vapor Pressure Spot Welding Electrode Tips TZM - Faced Tips Faced Electrode

Product Details:

Place of Origin: CHINA
Brand Name: JBNR
Certification: ISO9001
Model Number: WEWM001

Payment & Shipping Terms:

Minimum Order Quantity: Negotiation
Price: Negotiable
Packaging Details: wooden box
Delivery Time: 13 days
Payment Terms: Western Union, L/C, T/T
Supply Ability: 100PCS/Month
Detailed Product Description
Material: Tungsten, Tungsten Copper, Tungsten Silver, TZM Size: Customized
Application: Welding
High Light:

tungsten welding electrodes

,

spot welding electrodes

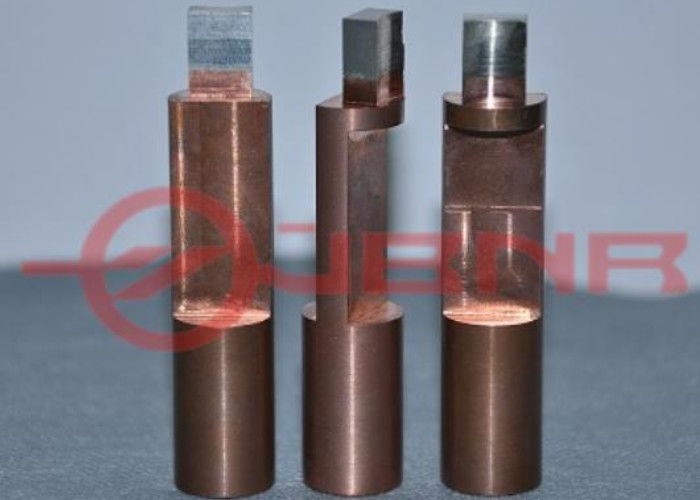

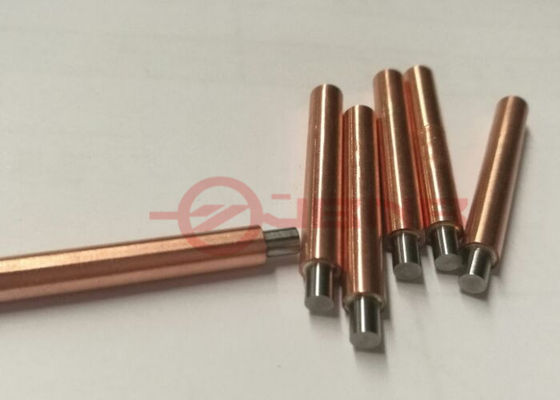

Low Vapor Pressure Copper-tungsten, Silver Tungsten, Molybdenum And TZM-faced Tips Faced Electrode

Jiabang's copper-tungsten, silver tungsten, molybdenum and TZM-faced tips listed here withstand greater heat and pressure, at the expense of some conductivity. Besides being used for spot welding high resistance base metals, they are useful in achieving “heat balance” when welding dissimilar metals. We can make the standard one with taper and shank, also we can make the electrode per customer’s drawing.

Jiabang bonding technology:

1) silver brazing. Advantage: fast join, flexible and no limit for different shape. Disadvantage: silver is expensive; handle by experienced worker otherwise it is easily has gap or porosity between shank and refractory metal face.

2) back shank casting: very good heat transfer and strengthen between the shank and refractory metal face.



Tungsten copper



Content Density (g/cm³) Hardness(HRB) Conductivity(%IACS) Class
W50Cu50 11.9 65 54
W55Cu45 12.5 70 49 10
W70Cu30 14.1 82 42
W75Cu25 14.5 90 38 11
W80Cu20 15.2 98 34 12
W85Cu15 15.9 240HB 30
W90Cu10 16.75 260HB 27
