| Material Standard: | ASTM B392-98 | Material Grade: | RO4200-1, RO4210-2 |
|---|---|---|---|
| Purity: | ≥ 99.95% | Tensile Strength : | 18000 Psi, 125 MPa |
| Yield Strength : | 12000 Psi, 85 MPa | Dimension: | 2~20mm Thickness |
| High Light: | niobium sheet,niobium rod |
||

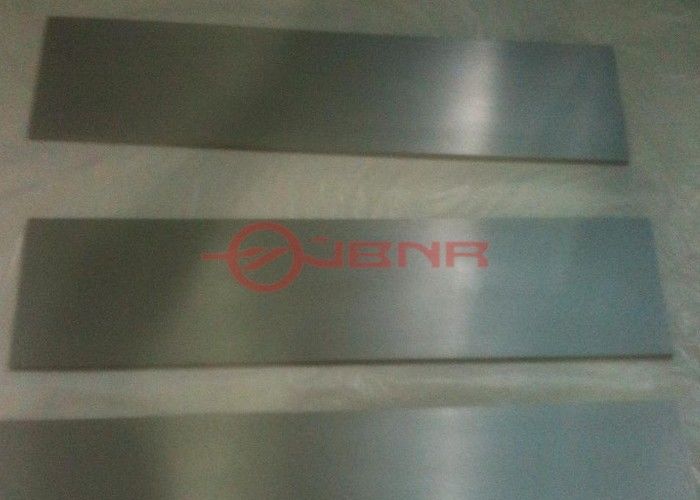

Niobium Products Columbium Plate High Purity Used as Sputtering Target ASTM B392-98
1.Description
For Columbium sputtering target, we focus on to offer our customers with high purities ranging from 3N5 to 5N, fine and uniform grain size, elimination of strong texture banding, and early target life size stability.
Our niobium sputtering targets' metallic impurities and gaseous impurities have been measured by known authorities around the world.
Besides, we also offer program of recycling reclaimed scrap targets.
niobium target is used as barrier metal for copper wiring device.
2.Application
Niobium rod are widely used in chemistry, electronics, aviation and aerospace industry
3.Specification
Chemical composition
| Grade | Chemical composition ,maximum | ||||||||||||
| Fe | Si | Mo | W | Ti | Cr | Ta | Ni | O | C | H | N | Nb | |
| Nb1 | 0.005 | 0.005 | 0.010 | 0.010 | 0.002 | 0.002 | 0.10 | 0.005 | 0.020 | 0.020 | 0.001 | 0.01 | Balance |
| Nb2 | 0.01 | 0.005 | 0.010 | 0.020 | 0.005 | 0.005 | 0.25 | 0.005 | 0.040 | 0.030 | 0.005. | 0.025 | Balance |
Size :Special requirements to be agreed upon by the supplier and buyer
