High Temperature Furnace 99.95% min Molybdenum / Moly / Mo Reflection Shield

China High Temperature Furnace  99.95% min Molybdenum / Moly / Mo  Reflection Shield supplier

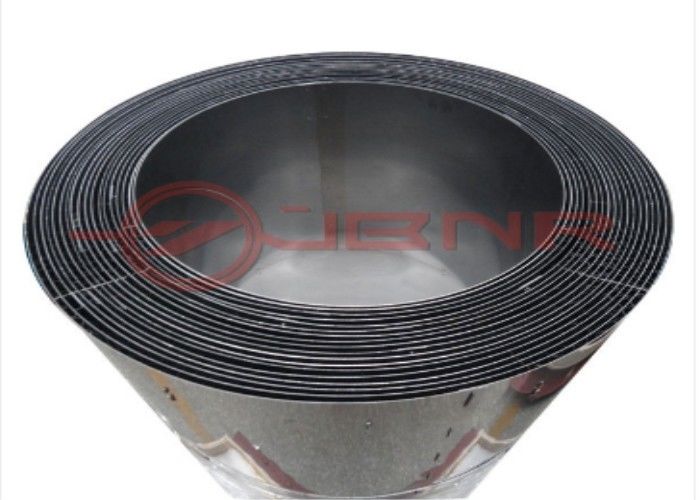

Large Image :  High Temperature Furnace 99.95% min Molybdenum / Moly / Mo Reflection Shield

Product Details:

Place of Origin: China
Brand Name: JBNR
Certification: ISO9001:2008
Model Number: As per customer's request

Payment & Shipping Terms:

Minimum Order Quantity: Negotiation
Price: Negotiable
Packaging Details: plywood box with foam sheet inside
Delivery Time: 15-25days
Supply Ability: 1000 Kilogram / Kilograms per Month
Detailed Product Description
Density: ≥10.1/cm3 Purity: ≥99.95%
Color: Silver Grey Application: Sapphire Growth Furnace Heat Reflection
Application Temperature Environment: ≤2000℃ Dimension: Customized
High Light:

mo sheet

,

tungsten heating wire

High Temperature Furnace 99.95% min Molybdenum / Moly / Mo Reflection Shield



Ⅰ, Physical and chemical properties



1,Purity:Mo≥99.95%

2,Density::Mo≥10.1g/cm3

3,Application temperature environment:≤2000℃;



Ⅱ, Measurements and tolerances

Unit:mm

Produced by single molybdenum sheet Produced by multi-molybdenum sheet
thickness Max cylinder diameter Max cylinder height
2.0±0.1 450±2 660±1
1.0±0.08 610±2 660±1 Manufacture according to customers’
0.5±0.04 700±2 660±1 requirements
0.3±0.03 700±2 660±1

Special sizes can be manufactured based on customers' requirements



Ⅲ , Manufacture process and equipment

High Temperature Furnace  99.95% min Molybdenum / Moly / Mo  Reflection Shield





Ⅳ,Application
As the heat shield parts in the sapphire growth furnace, molybdenum heat shield, molybdenum upper cover and bottom cover have the key influence on the heat reflection.
High purity, accurate dimenisons, smooth surface, easy assembly, and reasonable design of the molybenum heat insulator will be very important for the sapphire ingot quality.
