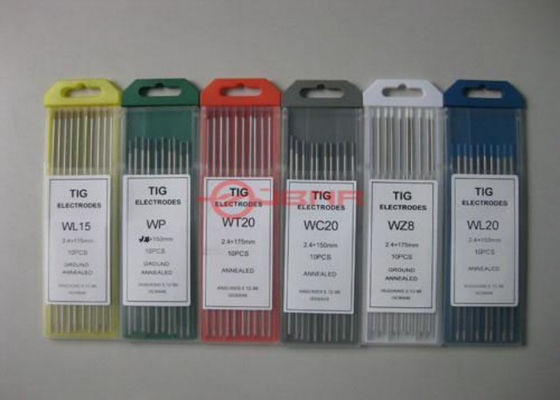

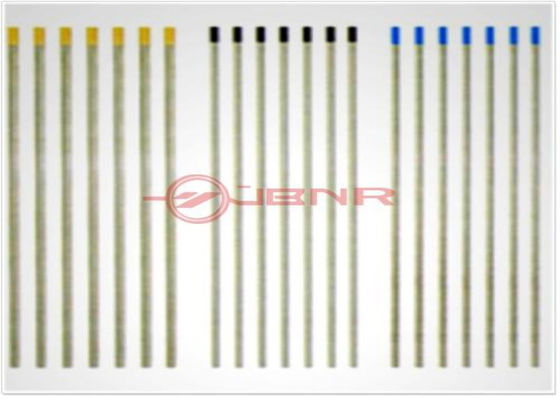

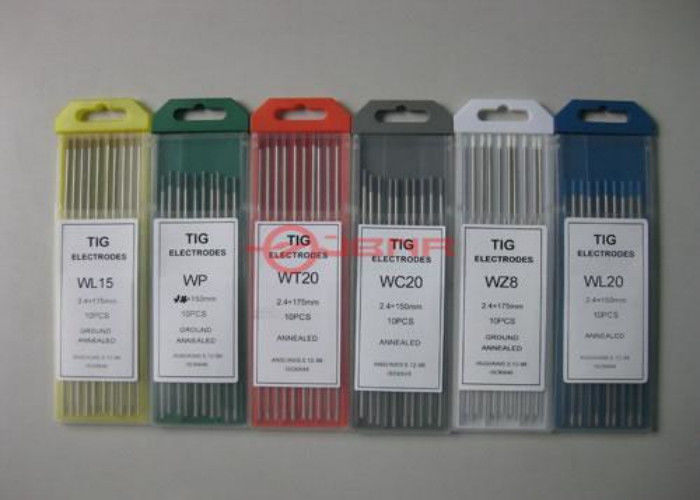

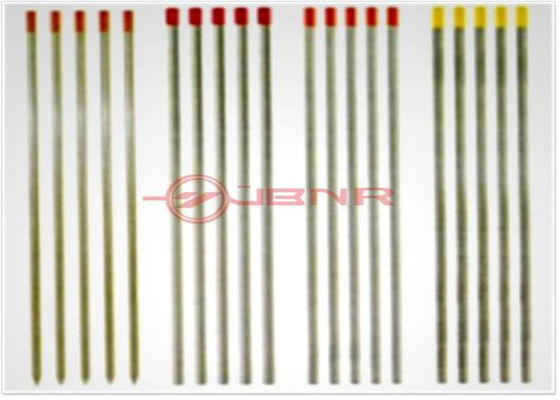

Polished Surface Pure Tungsten Electrodes , Good Conductivity Wolfram Tungsten Electrodes

Large Image : Polished Surface Pure Tungsten Electrodes , Good Conductivity Wolfram Tungsten Electrodes

Product Details:

Place of Origin:	China
Brand Name:	JBNR
Certification:	ISO9001:2008
Model Number:	WT20,WP,WC20,WL10,WL15,WL20

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiable
Packaging Details:	plywood box with foam sheet inside
Delivery Time:	15-25days
Supply Ability:	1000 Kilogram / Kilograms per Month

Contact Now

Detailed Product Description

Operating Current:	DC AC	Welding Current:	60-90,90-120,120-150
Operating Temperature:	Standard Temperature	Application:	TIG Welding, For Welding,Smelting,, Welding And Cutting
Surface:	Ground Finish	Standard:	ISO 6848, AWS A.5.1 E6013
Length:	175, 300, 350, 400,450mm	Diameter:	2.0, 2.5, 3.2, 4.0mm
High Light:	tungsten boats for evaporation , thermal evaporation boats

Tungsten Product Tungsten Electrode For Tig Welding Torch Tungsten Welding Rod Tungsten Welding Electrode

We have generally all types of tungsten electrodes for TIG welding, such as ce - w electrode , law electrode , th - w electrode , zr - w electrode , yt - w electrode , pure tungsten electrode , w-rex electrodes, the working performance is good and price is competitive, we accept sample before cooperation.

tungsten electrode composition					Color mark
Grade	Dioxide	Dioxide in %	Impurities %	tungsten %
WT10	ThO2	0.80-1.20	≤0.02	Remainder	Yellow
WT20	ThO2	1.70-2.20	≤0.02	Remainder	Red
WT30	ThO2	2.80-3.20	≤0.02	Remainder	Purple
WT40	ThO2	3.80-4.20	≤0.02	Remainder	Orange
WC20	CeO2	1.80-2.20	≤0.02	Remainder	Grey
WL10	La2o3	0.90-1.20	≤0.02	Remainder	Black
WL15	La2o3	1.40-1.60	≤0.02	Remainder	Gold
WL20	La2o3	1.90-2.10	≤0.02	Remainder	Blue
WZr3	ZrO2	0.15-0.50	≤0.02	Remainder	Brown
WZr8	ZrO2	0.70-0.90	≤0.02	Remainder	White
WP	-	-	≤0.02	99.8	Green
WY	YO2	1.80-2.20	≤0.02	Remainder	Sky blue
WS2	YO2	1.80-2.20	≤0.02	Remainder	Turquoise

Diameter		Diameter tolerance	Length	Length tolerance
mm	inch	mm	mm	mm
1	1/25	(+/-)0.01	50,75,150,175	(+/-)1.0
1.2	6/125	(+/-)0.01	50,75,150,175	(+/-)1.0
1.6	1/16	(+/-)0.02	50,75,150,175	(+/-)1.0
2	2/25	(+/-)0.02	50,75,150,175	(+/-)1.0
2.4	3/32	(+/-)0.02	50,75,150,175	(+/-)1.0
3	3/25	(+/-)0.03	50,75,150,175	(+/-)1.0
3.2	1/8	(+/-)0.04	50,75,150,175	(+/-)1.0
4	5/32	(+/-)0.04	50,75,150,175	(+/-)1.0
4.8	3/16	(+/-)0.04	50,75,150,175	(+/-)1.0
5	1/5	(+/-)0.04	50,75,150,175	(+/-)1.0
6	15/64	(+/-)0.04	50,75,150,175	(+/-)1.0
6.4	1/4	(+/-)0.04	50,75,150,175	(+/-)1.0
8	5/16	(+/-)0.04	50,75,150,175	(+/-)1.0
10	2/5	(+/-)0.04	50,75,150,175	(+/-)1.0
