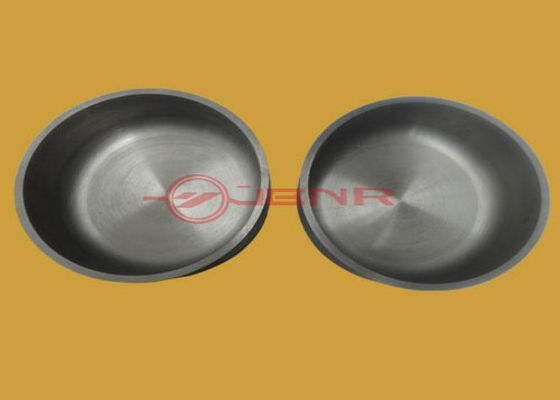

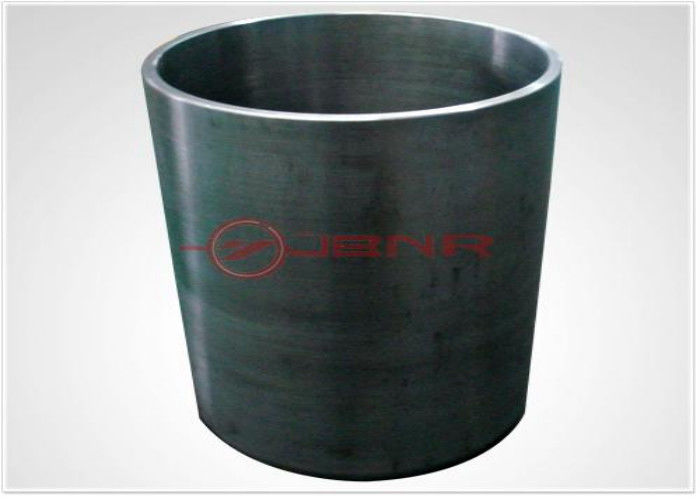

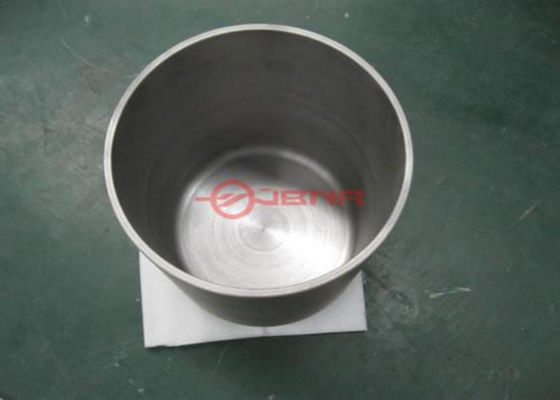

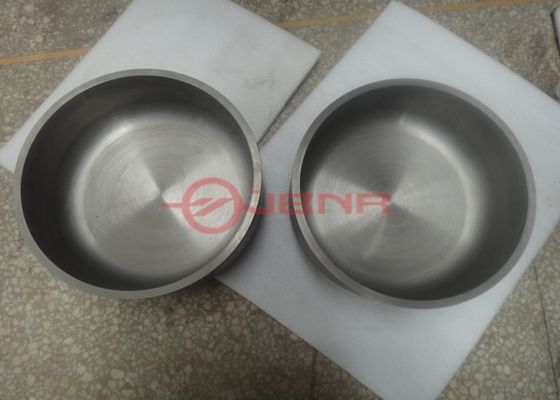

Silver Grey Tungsten Crucible , Sintering Tungsten Cup For Crystal Grower

China Silver Grey Tungsten Crucible , Sintering Tungsten Cup For Crystal Grower supplier
Silver Grey Tungsten Crucible , Sintering Tungsten Cup For Crystal Grower supplier Silver Grey Tungsten Crucible , Sintering Tungsten Cup For Crystal Grower supplier Silver Grey Tungsten Crucible , Sintering Tungsten Cup For Crystal Grower supplier Silver Grey Tungsten Crucible , Sintering Tungsten Cup For Crystal Grower supplier

Large Image :  Silver Grey Tungsten Crucible , Sintering Tungsten Cup For Crystal Grower

Product Details:

Place of Origin: China
Brand Name: JBNR
Certification: ISO9001:2008
Model Number: As per customer's request

Payment & Shipping Terms:

Minimum Order Quantity: Negotiation
Price: Negotiable
Packaging Details: plywood box with foam sheet inside
Delivery Time: 15-25days
Supply Ability: 1000 Kilogram / Kilograms per Month
Detailed Product Description
Density: 19.2g/cm3 Purity: W≥99.95%
Color: Silver Grey Metallic Luster Standard: ASTM B760-2007 GB/T 3875-2006
Tolerance: According To ASTM Or As Required Application: Sapphire Growth Furnace OEMs , Crystal Grower
Technique: Sintering Forging Stamping Supply State: Sintering Or Processing
Surface Treatment: Polished, Forged, Straightening Size: Customized
High Light:

tungsten filament wire

,

tungsten boats for evaporation

Tungsten Product ASTM B760-2007, GB/T 3875-2006 Standard 99.95% min Tungsten Crucible Tungsten Cup / Melting Pot



Description:

1). Sintering tungsten crucible

Density: 18.0 - 18.7 g/cm3

Working temperature: 1800 - 2, 600 DC

Diameter: 100 - 600mm (max. )

Cubage: 0.5 - 100 litres

2). Forging tungsten crucible

Density: 18.5 - 19.0 g/cm3

Working temperature: 1800 - 2, 600 DC

Diameter: 18 - 120mm (max. )

Cubage: 20 - 500 ml



Technical specifications

Diameter(mm) Thickness(mm) Height(mm) Surface finish inner surface finish inner bottom finish
30-50 2-10 ≤200 ≤Ra2.0 ≤Ra2.4 ≤Ra2.8
50-100 3-15 ≤300 ≤Ra2.0 ≤Ra2.4 ≤Ra2.8
100-150 3-15 ≤350 ≤Ra2.0 ≤Ra2.4 ≤Ra2.8
150-200 5-20 ≤400 ≤Ra2.0 ≤Ra2.4 ≤Ra2.8
200-300 8-25 ≤500 ≤Ra2.0 ≤Ra2.4 ≤Ra2.8
300-400 8-30 ≤600 ≤Ra2.0 ≤Ra2.4 ≤Ra2.8
400-450 8-30 ≤650 ≤Ra2.0 ≤Ra2.4 ≤Ra2.8
450-600 8-35 ≤800 ≤Ra2.0 ≤Ra2.4

≤Ra2.8





Specifications

1.According to different processing methods, tungsten crucibles for vacuum coating can be mainly divided into sintered molding, press molding, spinning molding, turning forming and welding forming.

2.Turning forming is mainly applied. We recommend the working temperature of the tungsten crucible for vacuum coating should be controlled below 2600℃.

3.We can produce tungsten crucible for vacuum coating according to the customer drawing.

Features

1.Tungsten crucible for vacuum coating is mainly used as containers and heating element for evaporation coating machine in optical glasses and spectacles field.

2.It has great strength under high temperature, anti-friction corrosion resistance;

3.It also possesses high thermal conductivity, thermal expansion coefficient and good harden ability.

Application

1.Tungsten crucible for vacuum coating products are widely used for smelting of rare-earth, quartz glass, electronic spraying, crystal growth and other industries.

2.Generally, sintered tungsten crucible is large while the forged one is small; the wall of rolled tungsten crucible is thin; welded tungsten crucible is cost-effective but owns inferior intensity.

3.Tungsten crucible under turning forming is denser than sintered one.



Silver Grey Tungsten Crucible , Sintering Tungsten Cup For Crystal GrowerSilver Grey Tungsten Crucible , Sintering Tungsten Cup For Crystal Grower
