Product Details:
Payment & Shipping Terms:
|
| Material: | 75WCu | Density: | 14.5 |
|---|---|---|---|
| Hardness: | HRB90 | ||
| High Light: | tungsten welding electrodes,spot welding electrodes |
||
Generally contact tips was made of copper or the (chromium zirconium copper). Currently, most of the big vessels and big diameter oil pipe need be welded by automation welding machine, which means it need complete the welding process without the stop. Those process controls ensure the welding as good quality. CuCrZr contact tips soft temperature around 800ºC, its less wear resistance capability can not guarantee the 24 hours welding system keep welding without stop to replace the tips.
JBNR develop the new technology of SAW welding contact tips by using copper tungsten to keep higher softer temperature, higher wear resistance, and CuCrZr material which keep good thermal conductivity.
Our customers are using our contact tips and proved our product have very good quality. They feedback our new contact tips’ life time is at least 5 times longer than the Cu and CuCrZr.
| content(%wt.) | density(g/cm3) | conductivity(%IACS) | hardness(HRB) | RWMA |
| Cr: 0.5-1.5% Zr:0.05-0.25% Cu:balance | 8.9 | 80 | 80 | class 2 |
| content | Density | Hardness | Conductivity | Class |
| W75Cu25 | 14.5 | 90 | 38 | 11 |
| W80Cu20 | 15.2 | 98 | 34 | 12 |

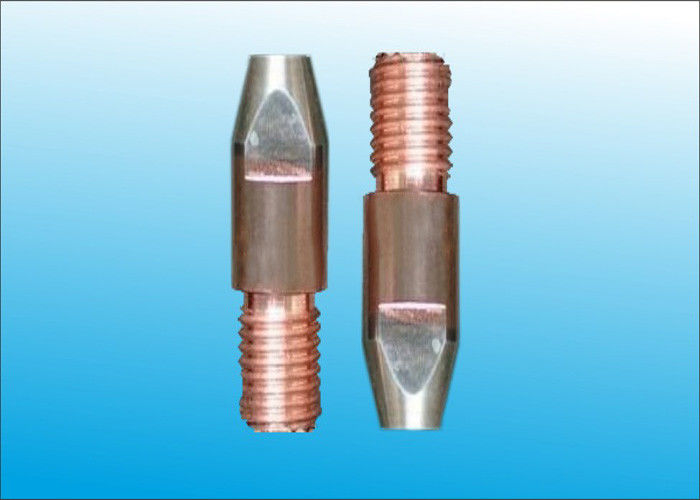

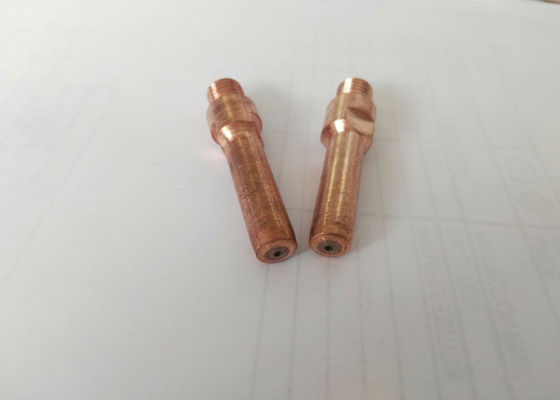

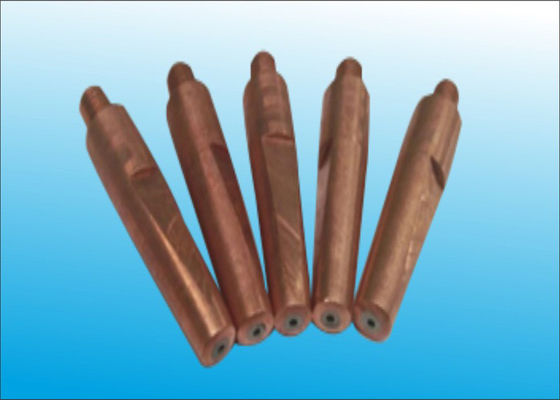

Product picture:
